Triaxial accelerometer ASC EQ-3211
MEMScapacitivewith built-in electronics

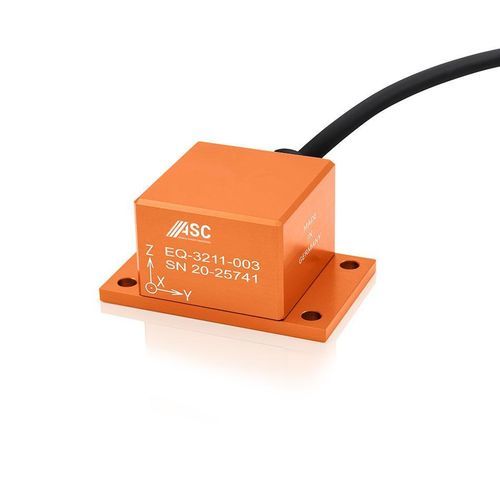

Triaxial accelerometer - ASC EQ-3211 - ASC - MEMS / capacitive / with built-in electronics
Triaxial accelerometer - ASC EQ-3211 - ASC - MEMS / capacitive / with built-in electronics
Add to favorites
Compare this product
Go to the ASC website for more information

Characteristics

Number of axes
triaxial
Technology
MEMS, capacitive
Other characteristics
with built-in electronics, low-noise, IP67, with analog output, voltage output, analog, G-force, for continuous structure monitoring
Acceleration range

Max.: 49 m/s²
(97 ft/s², 161 ft/s²)

Min.: -49 m/s²
(-161 ft/s², -97 ft/s²)

Description

Technology
Sensors of type ASC EQ-3211 are based on proven MEMS technology and a capacitive operating principle. The integrated electronics provide a differential analog voltage output (±2.7 V FSO) and accept a flexible supply voltage from 5 to 40 VDC. The ASC EQ series delivers ultra-low noise and a resolution < 1 µg, meeting seismic motion class B requirements. An integrated built-in self-test allows on-site verification of sensor functionality.

Housing
The accelerometers are housed in a lightweight, corrosion-resistant aluminum enclosure rated IP67. A detachable cable with configurable length and choice of connectors simplifies installation and maintenance.

Applications
Designed for continuous monitoring of safety-critical structures such as power plants, tunnels and other civil infrastructure, the ASC EQ-3211 reliably detects very small vibration amplitudes for structural health monitoring and seismic instrumentation.

Key product details
  • Sensor type: Accelerometer (analog)
  • Sensor technology: MEMS capacitive
  • Number of sensitive directions: Triaxial
  • Output signal: Voltage (differential analog output ±2.7 V FSO)
  • Measurement ranges: ±3 g and ±5 g
  • Power supply: 5 to 40 VDC
  • Noise / Resolution: Ultra low noise, resolution < 1 µg (suitable for motion class B seismic measurements)
  • Built-in self-test for functionality verification
  • Housing material: Aluminum
  • Protection class: IP67
  • Temperature range: -40°C to +85°C
  • Detachable cable with configurable length and connectors


Technical specifications
  • Model series: ASC EQ series
  • Operating principle: Capacitive MEMS
  • Output: Differential analog voltage, full scale output ±2.7 V
  • Supply voltage: 5 VDC to 40 VDC
  • Measurement ranges available: ±3 g, ±5 g
  • Number of axes: 3 (triaxial)
  • Resolution: < 1 µg
  • Seismic motion class: B
  • Self-test: Integrated built-in self-test
  • Housing: Aluminum, IP67 rated
  • Connector/cable: Detachable cable, configurable length and connectors
  • Operating temperature: -40°C to +85°C
