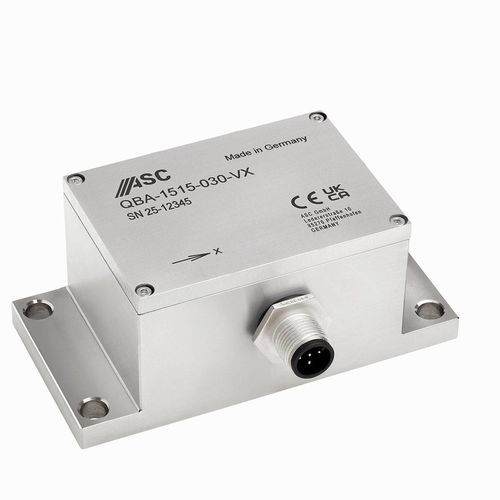

Uniaxial accelerometer ASC QBA-1515

MEMScrystalcurrent output

Overview The uniaxial accelerometers ASC QBA-1515 are based on proven, high-performance servo-balanced quartz sensing elements (Q‑MEMS) with a standard measurement range of ±30 g. They deliver high accuracy and long-term stability suited for structural health monitoring and precision vibration measurement in industrial applications.

Output & Electronics Single-ended analog current output 4-20 mA. Flexible power supply: 9 to 36 VDC. Resolution < 1 µg. Long-term stability: scale factor K1: 1200 ppm; bias K0: 1200 µg (1.2 mg).

Housing Robust stainless-steel housing (V2A material no. 1.4301) with protection class IP67. Circular metric M12 connector for a detachable cable. Available for vertical mounting with sensitive directions VX, VY or VZ. Customized connecting cables available on request.

Applications

• Structural health monitoring (bridges, civil engineering)
• Train vibration and tilt control
• Conveying and material handling systems
• Seismic and event detection
• Automotive testing and R&D
• Inertial/navigation systems for aviation and aerospace

Other features Operating temperature range: -40°C to +70°C. Housing material: stainless steel (V2A). Protection: IP67.

Technical characteristics / specifications

• Model: ASC QBA-1515
• Sensor technology: MEMS quartz (servo-balanced quartz sensing element)
• Number of sensitive directions: Uniaxial (VX, VY or VZ)
• Output signal: Current (4-20 mA)
• Measurement range: ±30 g
• Resolution: < 1 µg
• Scale factor stability (K1): 1200 ppm
• Bias stability (K0): 1200 µg (1.2 mg)
• Power supply: 9 to 36 VDC
• Protection class: IP67
• Connector: circular metric M12 (detachable cable)
• Housing material: stainless steel (V2A, material no. 1.4301)
• Operating temperature: -40°C to +70°C
• Mounting / sensitive directions: vertical mounted VX, VY or VZ
