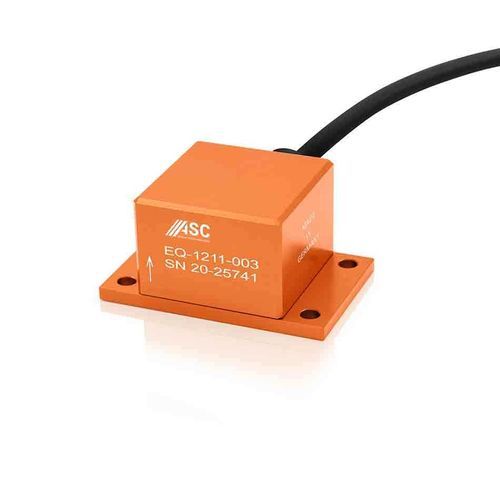

Uniaxial accelerometer ASC EQ-1211

MEMScapacitivewith analog output

Product overview

• Sensor type: Accelerometer (analog)
• Sensor technology: MEMS capacitive
• Number of sensitive directions: Uniaxial
• Output signal: Differential analog voltage (±2.7 V FSO)
• Measurement ranges: ±3 g and ±5 g

Technology
ASC EQ-1211 sensors are based on capacitive MEMS technology with integrated electronics providing a differential analog voltage output (±2.7 V FSO) and a wide supply voltage range (5–40 VDC). The device achieves ultra-low noise and a resolution < 1 µg, meeting Motion Class B requirements for seismic measurements. A built-in self-test enables on-site functional verification.

Housing
The accelerometer is housed in a lightweight aluminium enclosure with protection class IP67. A detachable cable is supplied; length and connector can be configured to installation needs to simplify field integration.

Applications
Designed for continuous monitoring of safety-critical structures and components subject to tectonic or environmental vibration — e.g., power plants, tunnels and infrastructure where reliable detection of very small vibration amplitudes is required.

Technical specifications

• Model: ASC EQ-1211
• Sensor technology: MEMS capacitive
• Sensitive directions: Uniaxial
• Output: Differential analog voltage (±2.7 V FSO)
• Power supply: 5–40 VDC
• Measurement ranges: ±3 g, ±5 g
• Resolution: < 1 µg
• Noise level: Ultra low (suitable for Motion Class B)
• Frequency range: DC to 700 Hz (±3 dB)
• Built-in self-test: Yes
• Housing material: Aluminium
• Protection class: IP67
• Operating temperature: -40 °C to +85 °C
• Cable: Detachable, configurable length and connector options
