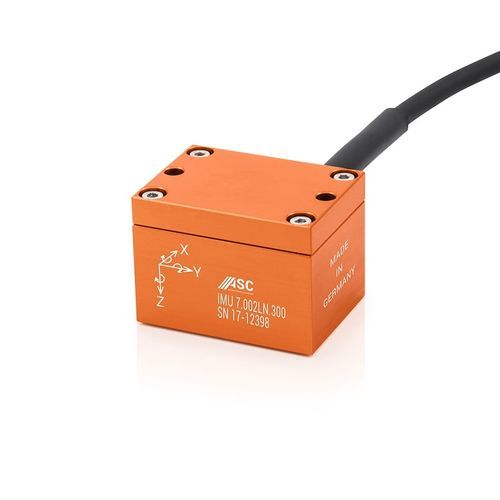

Inertial measurement unit ASC IMU 7-LN

Overview
The ASC IMU 7-LN is a 6 DOF analog inertial measurement unit combining capacitive and vibrating ring sensor technologies. It provides separate analog voltage outputs for each degree of freedom, uses LN (Low Noise) accelerometers and industrial-grade gyroscopes, and is built on a modular concept for flexible range combinations. The unit accepts a wide power supply from 6 to 40 VDC and features a detachable cable with configurable length and connectors.

Key features

• Sensor type: Inertial Measurement Unit (analog)
• Sensor technology: capacitive | vibrating ring | MEMS accelerometers and gyroscopes
• Degrees of freedom: 6 DOF
• Output signal: Separate analog voltage outputs for all 6 DOF
• Power supply: Flexible 6 to 40 VDC

Measurement ranges [g | °/s]
002|075, 005|075, 010|075, 025|075, 050|075, 002|150, 005|150, 010|150, 050|150, 002|300, 005|300, 010|300, 025|300, 050|300, 002|900, 005|900, 010|900, 025|900, 050|900

Technology
The IMU integrates proven MEMS accelerometers (LN) and industrial gyroscopes to detect low-level linear accelerations and angular rates. The internal electronics provide independent analog voltage outputs for each axis. The modular design allows custom combinations of accelerometer and gyroscope ranges to match application requirements.

Housing
Lightweight aluminum housing designed for industrial environments. Protection class rated to IP67 with a detachable cable assembly offering configurable lengths and connector options for system integration.

Applications
The compact ASC IMU 7-LN is suitable for vehicle and dynamic motion evaluation in ships, trains and road vehicles, and for guidance and performance control in automated guided vehicles (AGV) and other mobile platforms.

Environmental & Mechanical

• Temperature range: -40°C to +85°C
• Protection class: IP65 (spec list) — IP67 (housing)
• Housing material: Aluminum

Technical specifications

• Model: ASC IMU 7-LN
• Sensor type: Inertial Measurement Unit (analog)
• Sensor technology: capacitive | vibrating ring; MEMS accelerometers and gyroscopes
• Degrees of freedom: 6 DOF
• Output: Separate analog voltage outputs for all 6 DOF
• Measurement ranges (accelerations | angular rates): 002|075, 005|075, 010|075, 025|075, 050|075, 002|150, 005|150, 010|150, 050|150, 002|300, 005|300, 010|300, 025|300, 050|300, 002|900, 005|900, 010|900, 025|900, 050|900
• Power supply: 6 to 40 VDC
• Accelerometer grade: LN (Low Noise)
• Gyroscope grade: Industrial grade
• Housing: Lightweight aluminum
• Protection class: IP67 (housing) and IP65 (spec list)
• Operating temperature: -40°C to +85°C
• Cable: Detachable, configurable length and connectors
• Design: Modular concept for application-specific configurations
