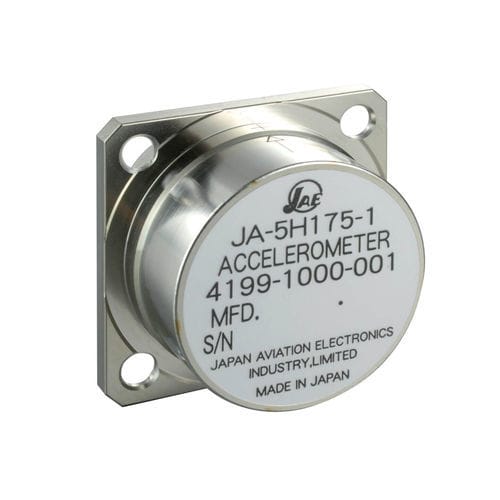

Uniaxial accelerometer JA-5H175crystalMEMShigh-sensitivity
Add to favorites
Compare this product
Characteristics
- Number of axes
- uniaxial
- Technology
- crystal, MEMS
- Other characteristics
- high-sensitivity, with built-in electronics, rugged, high-temperature, current output, analog, with analog output
- Acceleration range
Max.: 39 m/s²
(129 ft/s²)Min.: -39 m/s²
(-129 ft/s²)
Description
Technology
JA-5H175 is a servo-balanced quartz MEMS uniaxial accelerometer with integrated electronics providing an analog current output. The sensor delivers sub-microg resolution and excellent long-term stability of scale factor and bias (combined performance around 1.8 mg).
Applications
Designed for harsh downhole drilling environments including directional drilling, MWD/LWD and wireline operations. Engineered for continuous operation at elevated temperatures up to 175 °C.
Main features
Additional information
Integrated electronics provide standardized analog current signals for straightforward system integration. The servo-balanced quartz design ensures high measurement performance and stability under thermal and mechanical stress.
Technical specifications
JA-5H175 is a servo-balanced quartz MEMS uniaxial accelerometer with integrated electronics providing an analog current output. The sensor delivers sub-microg resolution and excellent long-term stability of scale factor and bias (combined performance around 1.8 mg).
Applications
Designed for harsh downhole drilling environments including directional drilling, MWD/LWD and wireline operations. Engineered for continuous operation at elevated temperatures up to 175 °C.
Main features
- Sensor technology: Servo-balanced quartz MEMS
- Axes: Uniaxial
- Output: Analog (current)
- Measurement range: ±4 g
- Operating temperature: -40 °C to +175 °C
- Resolution: <1 µg
- Long-term stability (combined K1 and K0): approx. 1.8 mg
Additional information
Integrated electronics provide standardized analog current signals for straightforward system integration. The servo-balanced quartz design ensures high measurement performance and stability under thermal and mechanical stress.
Technical specifications
- Model: JA-5H175
- Manufacturer / Brand: Japan Aviation Electronics (JAE)
- Sensor technology: Servo-balanced quartz MEMS
- Axes: Uniaxial
- Output: Analog current
- Range: ±4 g
- Resolution: <1 µg
- Stability (combined K1 and K0): approx. 1.8 mg
- Operating temperature: -40 °C to +175 °C
- Typical applications: Directional drilling, MWD/LWD, wireline and other demanding downhole environments
