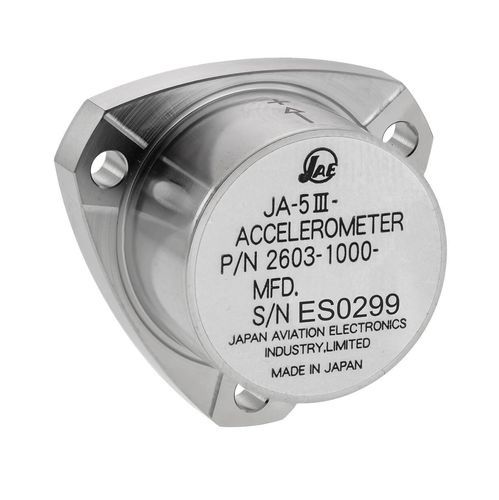

Uniaxial accelerometer JA-5 Type III

crystalMEMSwith built-in electronics

Overview
JA-5 Type III are servo-balanced quartz accelerometers manufactured by Japan Aviation Electronics (JAE) and distributed by ASC GmbH. The integrated electronic circuitry provides an analog current output. They are designed for inertial-navigation grade performance with very high resolution and long-term stability.

Technology
JA-5 Type III combines Q‑MEMS / MEMS quartz sensor technology with servo balancing and integrated electronics to deliver an analog current output. The accelerometers feature a resolution of < 1 µg and outstanding long-term stability of scale factor and bias.

Applications

• Inertial navigation and guidance systems (aerospace)
• Seismic monitoring
• Other applications requiring inertial-navigation grade performance

Export regulation
In Germany, Austria and Switzerland ASC GmbH is the authorized distributor of high-performance quartz-based accelerometers from Japan Aviation Electronics. A general export license exists for this product; no individual export license from the Japanese government is typically required.

Technical characteristics / specifications

• Sensor type: Analog accelerometer (JAE analog)
• Sensor technology: Q‑MEMS / MEMS quartz (servo-balanced)
• Number of sensitive directions: Uniaxial
• Output signal: Analog current output
• Measurement range: ±20 g
• Resolution: < 1 µg
• Scale factor stability (K1): 400 ppm
• Bias stability (K0): 100–500 µg depending on classification (example: 0.1 mg)
• Operating temperature range: -54 °C to +96 °C
• Integrated electronic circuitry: yes
