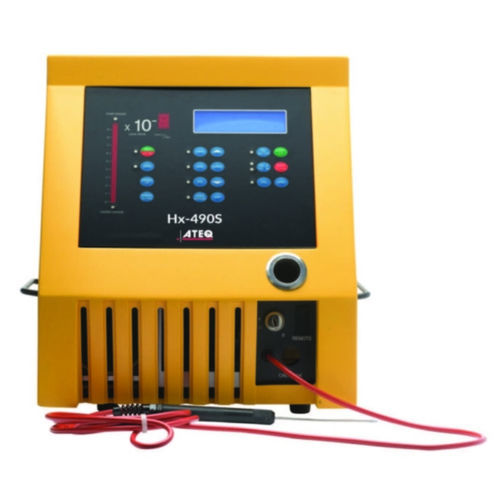

Hydrogen leak detector Hx-490S

heliumtracer gasspectrometer

Product Overview
The Hx-490S Dual Gas is an industrial portable sniffing leak detector for Helium and Hydrogen. It uses an industrial-grade mass spectrometer to provide high sensitivity, fast response and compact footprint. The built-in calibrated dual-purpose leak standard and simple user interface allow quick selection between helium and hydrogen for tracer-gas tests.

Highlights

• Graphical and alphanumeric displays
• High-performance mass spectrometer detector
• Simplified set-up and operation

Applications

• AUTOMOTIVE: air conditioning, radiators, exhausts, transmissions
• EMOBILITY: battery packs, pouches & cells, modules, housings
• PACKAGING: aerosol caps, plastic bags, spray containers, bottles
• MEDICAL: blister packs, fluid bags, filters, condoms

Features

• Industry-leading response time (< 0.5 s)
• Tracer gas background suppression
• Sensitivity down to 5 x 10^-8 atm cc/sec
• Total start-up time < 3 minutes
• Fully automatic calibration sequence with built-in dual-purpose leak
• User-selectable helium or hydrogen sniffer mode
• Front panel key lock-out and sealed membrane keypad
• Interactive system diagnostics with multilingual displays
• Adjustable high-output audio alarm (110 dB)

Test Modes

• Flow units: cc/sec, oz/yr, Pa·m3/s
• Helium or Hydrogen sniffing test

Flexible Communication Format (options)

• Full duplex RS232 communication (option)
• AC & DC PLC interfacing (option)
• Analog outputs (option)
• Data Link Software (option)

Options

• Vibrated probe with built-in auto-zero switch (option)
• Remote display
• Carrying case
• Portable cart

Accessories

• Test booths and fixturing
• Multi-point probes
• Robotic sniffing systems
• Leak calibrator and master leak
• Connectors

Technical specifications

• Model: Hx-490S
• Detection gases: Helium and Hydrogen (user selectable)
• Detector type: Industrial-grade mass spectrometer
• Sensitivity: down to 5 x 10^-8 atm cc/sec
• Response time: < 0.5 seconds
• Start-up time: < 3 minutes
• Built-in calibration: automatic sequence with built-in dual-purpose leak
• Alarm: Adjustable audio alarm, 110 dB
• Controls/display: 40-character alphanumeric prompting display; graphical and alphanumeric views; multilingual diagnostics
• Keypad: Sealed membrane keypad with front panel key lock-out
• Physical: Weight 31.8 kg / 70 lbs; Dimensions (W x H x D) 344 x 395 x 618 mm / 13.5" x 15.5" x 24.4"
• Power: 115/220 V AC, 60/50 Hz, 6/3 Amps (CE compliant)
• Operating temperature: 0°C to +46°C; Storage: 0°C to +60°C
• Available options/accessories: vibrated probe w/ auto-zero, remote display, carrying case, portable cart, RS232, PLC interfacing, analog outputs, data link software, test booths, multi-point probes, robotic sniffing, leak calibrator, master leak, connectors
