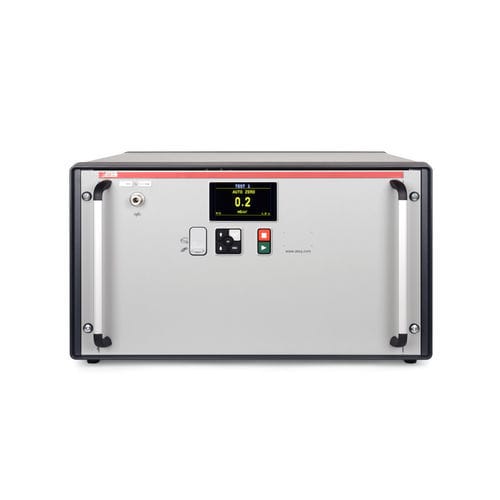

Differential pressure decay leak tester F670LV

for containersfor vesselsfor automotive applications

Overview
F670LV is an instrument for leak testing very large volumes (up to 200 L) using a patented Differential Noise Canceling (DNC) method based on Differential Pressure Decay and a high-sensitivity pressure transducer. With the ATEQ F670LV and DNC, pressure drops below 0.1 Pa/sec can be detected, enabling reliable testing of large, flexible parts and assemblies.

Applications

• Parts with very large volumes such as tanks and large enclosures
• Electric vehicle battery housings and other large EV components sensitive to background noise
• Integration into test benches and production lines for end-of-line or in-process testing

Features

• 128 programs for process flexibility
• Large-flow valves for fast filling and handling of parts
• Fully integrated electronics and pneumatics for compact installation
• Flexible communications: RS232, USB; optional Fieldbus modules
• Environment: ROHS compliant

Measurement characteristics

• High-sensitivity pressure transducer enabling detection of very small pressure drops (below 0.1 Pa/sec with DNC)

Control interface

• WINATEQ 300 graphical control interface for program management and data handling

Specifications (key items)

• Physical: Weight 35 Kg; Dimensions (HxWxD) H295 x W520 x D550 mm
• Electrical supply: 24 V DC / 1.6 A
• Temperature: Operating +5°C to +45°C; Storage 0°C to +60°C
• Air supply: Clean, dry air required; air quality per ISO 8573-1; test pressure input requires external regulator

Options

• 9 inputs / 5 outputs for I/O integration
• Optional Fieldbus: PROFIBUS, DeviceNet, PROFINET, EtherNet/IP, EtherCAT, Modbus RTU
• 2 pneumatic outputs for automation

Factsheets / Brochures
Detailed product brochure and DNC leaflet available in multiple languages describing features and specifications.

Technology

• DNC (Differential Noise Canceling) compensates for background disturbances to provide faster, more accurate leak readings in noisy factory environments

Factory disturbances addressed by DNC

• Temperature variations (doors/windows opening, HVAC)
• Pressure variations (time of day, weather)
• Vibrations (machine movement, forklifts, nearby activity)

Leak reading improvement
The DNC function stabilizes leak readings by compensating background disturbances so they do not influence the leak measurement sensor.

Technical specifications

• Model: F670LV
• Leak test method: Differential Pressure Decay with DNC
• Sensitivity: detects pressure drops below 0.1 Pa/sec
• Programs: 128
• Valves: large-flow valves for fast part handling
• Communications: RS232, USB; optional Fieldbus modules
• Electrical: 24 V DC / 1.6 A
• Weight: 35 Kg
• Dimensions: H295 x W520 x D550 mm
• Operating temperature: +5°C to +45°C; Storage: 0°C to +60°C
• Air: Clean, dry air per ISO 8573-1; external regulator required
• Standards: ROHS
