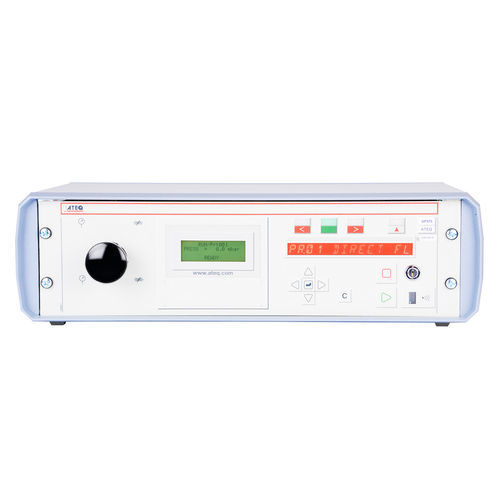

Differential pressure flow meter MF570

volumemassfor air

Overview
The ATEQ MF570 is a differential micro flow tester combining fast cycle times with high-accuracy leak measurement. It uses differential pressure drop and stable flow measurement via a laminar flow element. The measurement element is fully integrated in a single module and the unit supports SI, USA (SAE) and custom units, with ambient temperature and atmospheric pressure indication.

Applications

• Leak detection and flow control
• Valve seats
• Gearboxes
• Hydraulic components
• Motors
• Aerosol control
• Injectors

Key features

• Flow measurement ranges: 2 / 20 / 200 ml/min
• Measurement units: SI, USA (SAE) and custom units
• Ambient temperature and atmospheric pressure indication
• Measurement element fully integrated into one module
• 16 user-programmable test programs

Mechanical pressure regulation

• Vacuum
• 5–50 kPa
• 20–400 kPa
• 500–900 kPa
• 500–1600 kPa

Electronic pressure regulation

• Vacuum
• 1–10 kPa
• 5–50 kPa
• 20–200 kPa
• 50–500 kPa
• 100–1000 kPa
• 100–1600 kPa
• 100–2000 kPa

Flexible communication format

• RS232: printer, PC and memory modules
• RS232: intelligent RC5 remote control
• RS485: ATEQ network
• Time and date, language and units selection, test customization

Environment / Standards
ROHS compliance noted.

Measurement ranges (flow)
Range | Accuracy | Max resolution
2 ml/min | ±2.5% of flow + 0.002 ml/min | 0.001 ml/min
20 ml/min | ±2.5% of flow + 0.02 ml/min | 0.01 ml/min
200 ml/min | ±2.5% of flow + 0.2 ml/min | 0.1 ml/min

Pressure measurement
Range | Accuracy | Max resolution
All ranges | P + 2 digits | 0.01% of full scale

Technology
The Mass Flow technology converts the mass of air through a laminar flow element into a leak value (e.g. cm3.atm/h). The design handles large-leaking parts on the line without requiring a reset and avoids heating elements to measure air mass, reducing sensitivity to contamination. The unit supports test pressures up to 20 bar (300 PSI) and integrates temperature compensation for improved accuracy under varying conditions.

Options

• 7 inputs / 5 outputs
• 2 pneumatic outputs for sealing connector control
• 6 × 24 V programmable outputs for external connection
• Electronic regulator
• Dual pressure
• High-speed valve
• 2 analog outputs (current or voltage)
• Fieldbus

Technical specifications

• Model: MF570
• Brand: ATEQ
• Weight: Approximately 7 kg
• Dimensions (WxHxD): 537 × 157 × 381 mm
• External electrical supply: 24 VDC / 1.6 A or 110–240 VAC
• Operating temperature: +10 °C to +45 °C
• Storage temperature: 0 °C to +60 °C
• Interface: navigation keys; 4-line LCD display; result indicator lights
• Air supply: clean, dry air (apply ISO 8573-1 air quality standard)
• Flow ranges and accuracies: 2 / 20 / 200 ml/min as specified above
• Pressure measurement accuracy: P + 2 digits; max resolution 0.01% of full scale
• Measurement units: SI, USA (SAE) and custom units
• Programs: 16 user programs
• Measurement element: fully integrated module
• Communications: RS232, RS485, remote control support, time/date, language and units selection
• Options / I/O: multiple digital and pneumatic outputs, analog outputs and fieldbus capability
