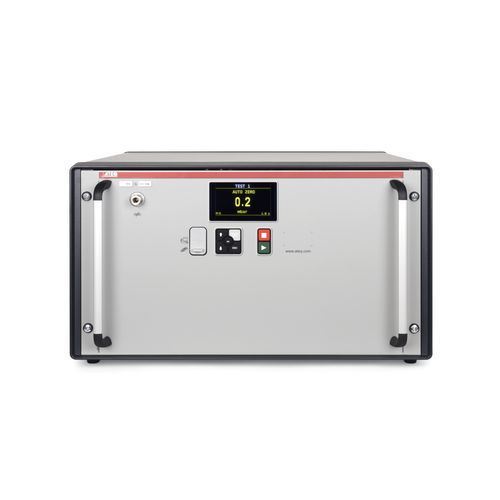

Differential pressure decay leak tester F670LV

pneumaticfor automotive applicationsautomatic

F670LV is a breakthrough instrument able to leak test very large volumes using a new patented technology (Based on Pressure Decay) thanks to the high sensitivity of our latest pressure transducer. By using ATEQ’s F670LV Differential Pressure Decay leak Tester with DNC, it is now possible to detect pressure drops below 0.1 Pa/sec. APPLICATIONS Parts with very large volumes such as tanks, electrical car batteries… An EV battery housing is a great application for ATEQ’s new DNC leak testing technology since it is a large, flexible component that is easily affected by variations in background noise. FEATURES • 128 programs • Large Flow Valves for fast management of the parts • Fully integrated electronics and pneumatics • Flexible communication format: RS232, USB SPECIFICATIONS PHYSICAL Weight : 35 Kg Dimensions : (WxHxD) H295*W520*D550 ELECTRICAL SUPPLY 24 V DC / 1.6 A TEMPERATURE Operating : + 5°C at + 45°C Storage : 0°C at + 60°C AIR SUPPLY Clean and dry air Air quality standard to be applied (ISO 8573-1) Test pressure input, need an external regulator OPTIONS • 9 inputs / 5 outputs • Optional Fieldbus: PROFIBUS, DeviceNet, PROFINET, EtherNet/IP, EtherCAT network, Modbus RTU • 2 pneumatic outputs for automation • Clean and dry air required • Air quality standard to be applied (ISO 8573-1)
