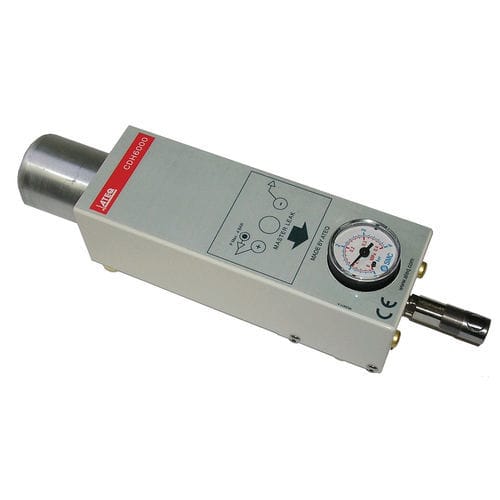

Pressure calibrator CDH6000

leakfor gas leak detectors

Overview
The CDH6000 is a gas H2N2 (5% hydrogen) supply designed to check the calibration of the H6000 leak detector. It can be used with one or several calibrated leaks.

Features

• Gas supply: H2N2 (5% hydrogen) for calibration of H6000 leak detector.
• Requires a calibrated leak to deliver a known quantity of gas at a given pressure.
• Pressure gauge for monitoring the cartridge/output pressure.
• Maximum cartridge pressure: 4 bar.
• Target gauge pressure for the calibrated leak: 1 bar (characteristic pressure value of the calibrated leak).

Operations

• Install the calibrated leak on the input connector of the CDH6000.
• Adjust the pressure using the left (increase) and right (decrease) buttons until the gauge shows 1 bar.
• If the pressure displayed on the CDH6000 gauge does not exceed 1 bar, replace the cartridge (maximum pressure: 4 bar).
• To change the cartridge: press the button on the connector to remove the cartridge, then insert a new cartridge by sliding it down until it clicks into place.
• Can be used with one or several calibrated leaks depending on calibration setup.

Tips
When finished using the CDH6000 calibrator, disconnect the calibrated leak and store it in its case to avoid excessive contamination of the test area.

Factsheets
Detailed information about the CDH6000 (features, specifications, etc.) is available in the product factsheet(s).

Technical specifications

• Model: CDH6000
• Function: Calibrator / gas supply for H6000 leak detector calibration
• Calibration gas: H2N2 (5% hydrogen)
• Requires: Calibrated leak (installed on input connector)
• Gauge target pressure for calibrated leak: 1 bar
• Maximum cartridge pressure: 4 bar
• Cartridge change: push-button release on connector; insert until audible/tactile "click"
• Pressure adjustment: left/right buttons to increase/decrease pressure
