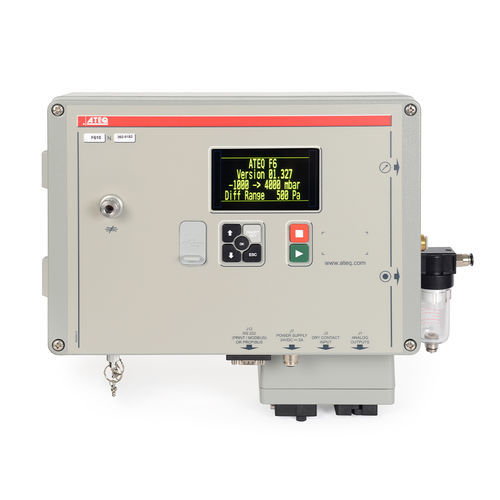

Electro-pneumatic leak tester F610

pressuredigitaldifferential pressure decay

Overview
The ATEQ F610 is a differential pressure decay leak tester in an IP54-rated waterproof case, designed for industrial quality control in harsh environments (dust, oil). It integrates updated electronics, a measurement module, user interface and accessories to provide fast, repeatable leak test cycles with accurate results.

Applications

• Automotive production and assembly
• Domestic appliances
• Medical devices
• Aeronautics
• Defense and military components
• Fluid and electrical components
• Food and cosmetic packaging

Features

• Differential pressure decay leak measurement (usable in pressure and vacuum)
• Full-scale leak measurement ranges: 50 Pa, 500 Pa, 5000 Pa
• Mechanical or optional electronic regulator from vacuum to 20 bar
• Up to 128 test programs
• On-line configuration via USB; master/slave USB modes
• Two-language interface (English + one other)
• Front-panel manual calibration with calibrated leak
• Data storage on internal memory or USB key; optional memory card for archiving

Test modes

• ΔP (Pa, 1/10 Pa)
• ΔP/t (Pa/s, 1/10 Pa/s)
• Flow units (sccm, mm3/s, cm3/s, cm3/min, cm3/h…)
• Blockage test
• Burst test
• Sealed components test
• Custom modes depending on application

Measurement characteristics — Pressure drop measurement

• 50 Pa: ±(1.5% Reading + 0.5 Pa) — Resolution 0.01 Pa
• 500 Pa: ±(0.5% Reading + 0.5 Pa) — Resolution 0.1 Pa
• 5000 Pa: ±(0.5% Reading + 5 Pa) — Resolution 1 Pa
• Accuracy = linearity + repeatability + hysteresis; optional laboratory accuracy available

Flexible communication format

• RS232: printer, Modbus RTU
• Slave USB: PC supervision (WinAteq 300, Sesame)
• Master USB: export parameters and results to USB key
• Optional Fieldbus modules: Profibus, DeviceNet, Profinet, Ethernet/IP, EtherCAT

Technology
Differential pressure decay uses a reference volume to test parts and compensates for ambient pressure and temperature variations. The differential sensor measures pressure difference between two circuits so measurement accuracy remains stable across test pressures.

Additional measurement modes

• Direct measurement: identical pressure in test part and reference; differential sensor measures variation
• Desensitized mode: measurement of large leaks using a pressure sensor when reject level exceeds differential sensor full scale

Factsheets
Detailed product factsheet (PDF) available with full features and specifications.

Technical specifications

• Model: F610
• Brand: ATEQ
• Weight: 10 kg
• Dimensions (W x H x D): 380 x 287 x 120 mm
• Power supply: 24 V DC / 2 A or 100–240 V AC / 50 W
• Operating temperature: +5 °C to +45 °C
• Storage temperature: 0 °C to +60 °C
• Measurement ranges (ΔP F.S.): 50 Pa, 500 Pa, 5000 Pa
• Programs/Memory: 128 programs; internal memory or USB key; optional memory card for archiving (up to 1 million results)
• I/Os and automation: 9 inputs / 5 local outputs standard; optional 6 in / 6 out 24 V programmable; 2 pneumatic outputs for sealing connector control
• Pneumatics/air supply: control 4/6 bar; supply pressure 1–2 bar above test pressure; clean, dry air (ISO 8573-1)
• Interface: colour graphic screen with menu-driven controls; SMART KEY programmable key
• Regulation: mechanical or electronic regulator; optional electronic regulator and dual-pressure capability
• Standards: RoHS compliance
