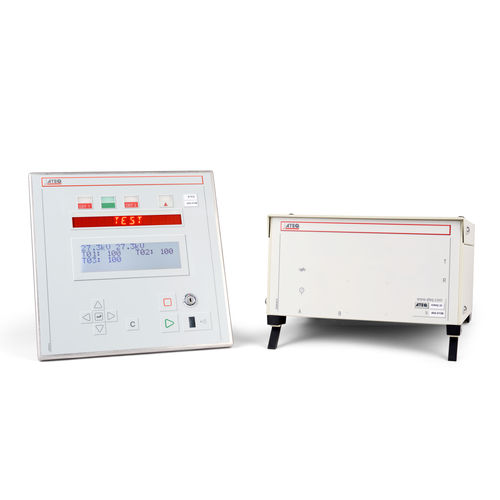

High-voltage leak tester IONIQ20

for packagingfor bottlesfor automotive applications

On the basis of its well proven concept of production line QC Testers, ATEQ has developed a new leak tester designed for the specific requirements of high volume production of plastic parts. This instrument is used for the detection of localized moulding faults, insufficient membrane thickness, perforations, etc. This instrument has also proven to be effective on testing pouch battery cells. The IONIQ is based on discharge current measurement and is able to detect defects up to of 10µm. MEASUREMENT PRINCIPLE • The IONIQ measures the current flowing between a patented charged probe and a ground plate placed under the part to be tested. • The IONIQ uses the % of the nominal voltage (which reflects the discharge current), measured on the part as PASS/FAIL level. • In a PASS situation (fig 1) : No hole, no weak part, the IONIQ measures a high %. The measured voltage and the nominal voltage are virtually equal. The result is above the reject level, the part has passed the test. • In a FAIL situation (fig 2) : The IONIQ measures a low %. The measured voltage is significantly below the nominal voltage. The result is below the reject level, the part has failed the test. • Test limitations: short probe-part-plate distance, electrical insulation from environment. FEATURES • Integrated ionising high voltage generator (5 to 27.3 kV) • Reject levels as % of nominal voltage (0 to 100%) • Monitoring and protection of high voltage generator • Limitation of the current rating • Speed: Minimum cycle time 0.6s • I/O’s for instrument control and results • 32 programs • Remote control allows the test module to be closed to the test part • And: Language selection, customization of test …
