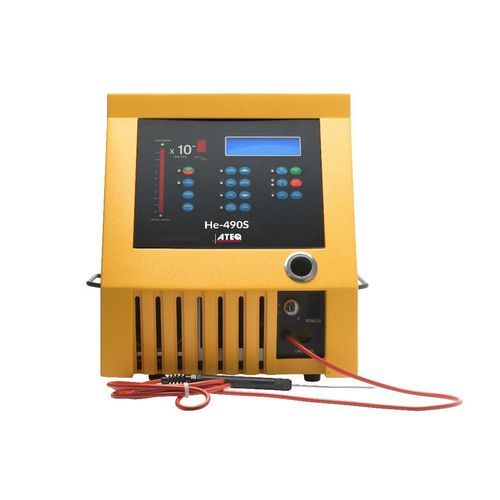

Helium leak detector He-490S

heliumtracer gasautomated

Product overview
The He-490S is a portable tracer-gas helium leak detector designed for industrial quality control. It offers direct-reading sensitivity to 5 x 10^-8 atm·cc/s, a response time under 0.5 second, helium background suppression (auto-zero) and fast start-up. The instrument can be integrated with the Smart Charge 5 evacuation and backfill station for automated workflows.

Highlights

• Graphical and alphanumeric displays
• Maximum measurement performance across seven decades
• Simplified set-up and intuitive operation

Applications

• AUTOMOTIVE: air conditioning, radiators, exhaust systems, transmissions
• EMOBILITY: battery packs, pouch cells, modules, housings
• ELECTRONICS: hard disks, displays, camera lenses
• MEDICAL: blister packs, fluid bags, filters, single-use devices

Features

• Response time less than 0.5 second
• Helium background suppression (zeroing capability)
• Maintenance-free dry pump
• Direct-reading sensitivity to 5 x 10^-8 atm·cc/s
• Total start-up time under 3 minutes
• Fully automatic calibration sequence with internal calibrated leak (1 x 10^-5 atm·cc/s)
• Front-panel key lock-out and sealed membrane keypad
• Interactive system diagnostics with multilingual displays
• Adjustable high-output audio alarm (110 dB)

Measurement characteristics

• Sensitivity: smallest detectable helium leak 5 x 10^-8 atm·cc/s
• Measuring scale: 7 decades
• Response time: < 0.5 s
• Pressure measurement: probe-blocked sensor (10^-3 Torr)
• Turbopump capability: suitable for high vacuum down to 10^-6 Torr
• Internal calibrated leak: ATEQ model M05, range 1.5 x 10^-5 to 7.5 x 10^-5 atm·cc/s (150 cc cylinder, ISO 17025 and NIST traceable)

Options & accessories

• Options: vibrated probe with built-in auto-zero, remote display, carrying case, portable cart
• Accessories: test booths and fixtures, multi-point probes, robotic sniffing, leak calibrator, master leak, connectors

Technical specifications

• Electrical supply: 115/220 V AC, 60/50 Hz, 6/3 A; CE compliant
• Weight: 70 lb / 31.8 kg
• Dimensions (W x H x D): 344 x 395 x 618 mm / 13.5 x 15.5 x 24.4 in
• Interface: 40-character alphanumeric display with menu-driven operator controls
• Operating temperature: 0°C to 46°C (32°F to 115°F)
• Storage temperature: 0°C to 60°C (32°F to 140°F)
