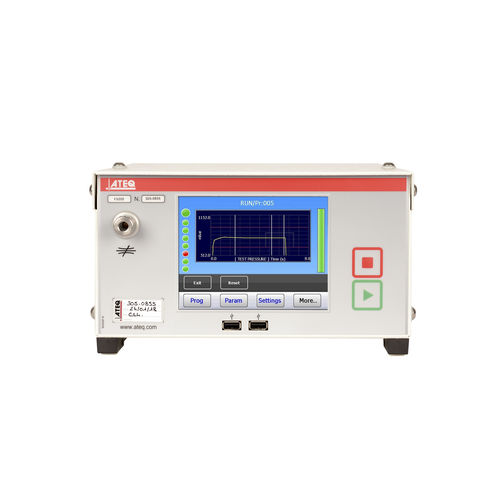

Differential pressure decay leak tester F5200

for automotive applicationsbreathing apparatus and face maskin-line

The ATEQ F5200 in its compact format is the easiest leak detector to operate and integrate intomanufacturing operations. Its comprehensive specifications, including ATEQ’s latest developments in pressure decay technology, make it an extremely versatile instrument. The F5200 offers a touchscreen graphical interface to combine great functionality with simplicity of use with simple and intuitive menu-driven operator controls. APPLICATIONS AUTOMOTIVE Shock absorbers, gearboxes, tank caps, carburettors, non return valves, cylinder heads, filters, radiators, seals, cylinders, engine oil and water circuits… DOMESTIC APPLIANCES Bottles, percolators, cookers, steam irons, ovens, washing machines… MEDICAL Catheters, dialysis equipment, micropipettes, plastic taps, drain bags, syringes, valves… PACKAGING Aerosol cans and valves, trigger pumps, ink cartridges, cosmestic bottles, food sachets… FEATURES • Differential pressure decay leak measurement • Large ranges of leak measurement (ΔP) F.S. : 50 Pa, 500 Pa ou 5000 Pa • 32 programs • Set-up on-line (via USB port) • 2 languages (English + other one) • Manual calibration on front panel with calibrated leak TEST MODES : • ΔP (Pa, 1/10 Pa) • ΔP / Δt (Pa/s, 1/10 Pa/s) • Flow units (mm3/s, cm3/s, cm3/min, cm3/h) • Blockage test • And others, depending on your applications FLEXIBLE COMMUNICATION FORMAT : • RS232: printer / Bar code reader / Modbus • Slave USB: supervision • Master USB: USB key to transfer (parameters, results, curves, statistics…) • Ethernet: email alert • Option: profibus, devicenet, profinet, ethernet/IP, ethercat
