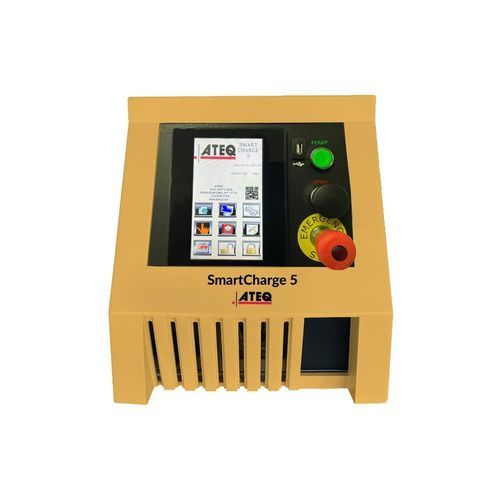

Helium gas evacuating and refilling device Smart Charge 5

mobilefor automotive applicationsautomatic

Overview
The Smart Charge 5 is a fully automatic, configurable evacuation and tracer gas backfill system with a built-in gross leak test. It is designed for pre-charging parts with tracer gases (e.g., helium, hydrogen) prior to leak testing and for any application requiring controlled evacuation and pressurization.

Highlights

• 7" color touch screen (177.8 mm)
• Portable design
• Data logging (Ethernet, front USB)
• Digital part pressure with 3 selectable units
• Password protection for user access control
• Support for up to 50 part recipes
• Fully automatic cycling

Performance
Base unit performs evacuation to ~25" Hg (25.5" Hg ultimate), vacuum decay testing and tracer gas backfill up to 700 psig. Evacuation levels and backfill pressures are configurable to suit test requirements.

Main features

• Recipe capability supporting up to 10 leak locations with user-configurable dwell at each site
• Serial printer output
• Data logging over Ethernet and front USB data retrieval
• Graphical user interface with color HMI touch screen
• 2 configurable inputs and 2 outputs for external fixtures or clamping
• Built-in gross leak test to prevent tracer gas saturation
• Password-protected access to prevent unauthorized changes

Standard capabilities

• Maximum fill pressure up to 700 psig (configurable)
• Storage for up to 50 part recipes
• 7" color HMI for full configuration and diagnostics
• 16-bit analog input resolution on the pressure transducer
• All required controls, gauging and valving included
• 3 CFM oilless product evacuation pump (air-driven venturi)
• Allen-Bradley MicroLogix 1400 PLC for control and set-points
• Front-mounted USB port for data storage and retrieval

Options

• Analog I/O expansions
• User I/O packages
• Serial printer
• Low-pressure mode (0–20 psig)
• Nitrogen charge capability up to 700 psig
• Barcode scanner feature

Main monitoring display
Primary operator HMI for system monitoring, recipe selection and diagnostics; graphical display of part pressure and leak rate.

Technical specifications

• Power: Universal voltage 110 VAC or 220 VAC, 50–60 Hz, 6.5 A nominal
• Dimensions (WxHxD): 344 x 395 x 618 mm (13.5" x 15.5" x 24.4")
• Utility fittings: 1/4" NPT female; 1/2" NPT female for part evacuation
• Pressure transducer: 0.01 psi resolution; accuracy ±0.25%
• Valving: Fast-acting pull-type solenoids with epoxy encapsulation
• Manifolding: Seamless tubing with compression fittings; helium leak tested to 1.0 × 10^-6 atm-cc/sec @ 700 psig
• Product evacuation pump: Air-driven venturi, ultimate vacuum ~25.5" Hg
• Electronics: Microprocessor-based PLC control
• Gauging: Digital part pressure and leak rate displayed on operator interface

Applications
Designed for production leak-testing workflows in manufacturing sectors such as automotive, aerospace, medical device and industrial components where controlled evacuation and tracer gas backfill are required.
