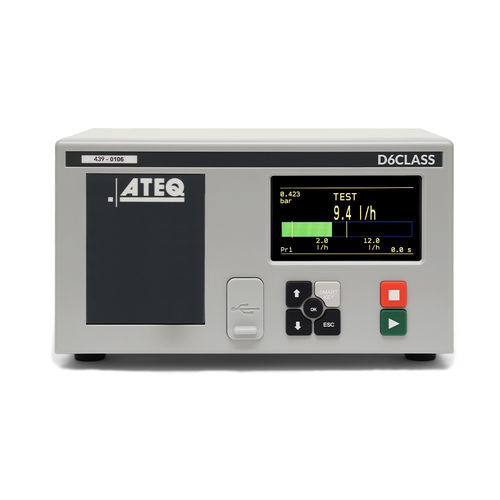

PROFIBUS tester D6 CLASS

fieldbusflowlaminar flow

Overview
After more than 50 years and 300,000 testers installed worldwide, ATEQ presents the D6 CLASS flow tester: new electronic module, new measurement module, new interface and new accessories designed to improve quality control and deliver fast and accurate leak/flow test cycles.

Applications

• Flow control: cookers, ovens, valves, gas taps, gas burners, lighters
• Leak detection: valve seats, gearboxes, hydraulic components, motors
• Control of aerosols, injectors and similar components

Features

• Flow measurement in direct or indirect testing
• Continuous measuring mode
• Wide flow measurement range
• Support for USA, S.I. and customer units
• Measurement in standard or customised conditions
• Recalculated flow at the nominal pressure
• Measurement element fully integrated into one module
• 128 programs
• Mechanical or electronic regulator from vacuum to 10 bar
• On-line setting via USB
• 2 languages (English + one other)
• Manual calibration on front panel with calibrated leak
• Data storage on internal memory or USB key

Flexible communication format

• RS232: Printer, Modbus RTU
• Slave USB: PC supervision (WinAteq 300, Sesame)
• Master USB: USB key for transfer (parameters, results, ...)
• Optional Fieldbus: Profibus, DeviceNet, Profinet, Ethernet/IP, Modbus RTU

Environment
ROHS standard

Measurement ranges (FLOW MEASUREMENT)
Range l/h — Accuracy — Max resolution l/h
1 — ± (2.5% F + 0.001 l/h) — 0.0001
5 — ± (2.5% F + 0.005 l/h) — 0.0001
30 — ± (2.5% F + 0.03 l/h) — 0.001
80 — ± (2.5% F + 0.08 l/h) — 0.001
150 — ± (2.5% F + 0.15 l/h) — 0.01
500 — ± (2.5% F + 0.5 l/h) — 0.01
1500 — ± (2.5% F + 1.5 l/h) — 0.1
4000 — ± (2.5% F + 4 l/h) — 0.1
10000 — ± (2.5% F + 10 l/h) — 1
F = Flow

Options

• 9 inputs / 5 local outputs compatible with 5 series instruments
• Electronic regulator
• 6 inputs / 6 outputs 24 V programmable for external automation
• External capillary: closed to test port
• Shut off / dumping / by-pass valve
• 2 pneumatic outputs for control of sealing connectors
• Memory card for archiving results (up to 400,000)

Technology
Laminar flow measurement principle: gas flows through a calibrated flow tube generating a pressure drop measured by a differential pressure transducer. The pressure difference between inlet and outlet of the laminar flow element is measured to determine flow. The part under test pressure is measured by a dedicated sensor.

Factsheets
Datasheet and product brochure available (English).

Specifications

• Model: D6 CLASS
• Weight: 7 Kg
• Dimensions (W x H x D): 250 x 150 x 360 mm
• Electrical supply: 24 VDC / 2 A or 100-240 VAC / 50 W
• Operating temperature: +5°C to +45°C
• Storage temperature: 0°C to +60°C
• Interface: Graphic color screen with menu-driven operator controls; SMART KEY programmable button
• Air supply: Clean and dry air; apply air quality standard (ISO 8573-1)
