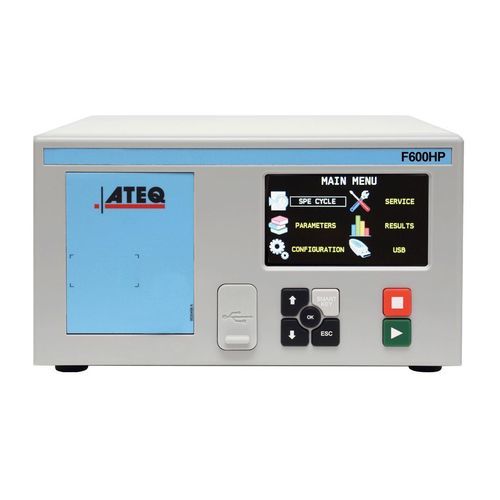

Pressure leak detector F600 HP

compactModbus

Overview
Without any doubt the smallest high pressure leak detector on the market. The F600 HP is equipped with the technical innovations of the 6 series and allows high pressure leak testing at a very competitive price.

Applications

• Catheters
• Refrigeration parts
• Oil radiators
• High-pressure tubes and pipes
• Valves
• Hydraulic brakes

Features

• Pressure decay leak testing from 5 to 1000 kPa
• Range of measurement from 20 to 175 bar (200 bar optional)
• 128 programs
• Mechanical regulation: 2 MPa / 5 MPa / 10.0 MPa / 17.5 MPa
• Electronic regulation: 4 MPa
• Flow units supported (mm3/s, cm3/s, cm3/min, cm3/h, ...)
• Desensitized Test mode and other application-dependent modes
• ROHS compliant

Flexible communication format

• RS232: printer, Modbus RTU
• Slave USB: PC supervision (WinAteq 300, Sesame)
• Master USB: USB key to transfer parameters and results
• 6 inputs / 6 outputs 24 V programmable for external automation

Test modes

• Standard pressure decay testing
• Desensitized mode (leak test adapted to application characteristics)

Measurement characteristics (table)
Pressure Range | Measurement range | Accuracy
5 MPa Max (50 bar) — 0.01 – 5.00 kPa — +/- 1.0% Rdg +1% F.S.
10 MPa (100 bar) — 0.01 – 10.00 kPa — +/- 1.0% Rdg +1% F.S.
From 2 to 17.5 MPa (20 MPa in option) / 20 to 175 bar (200 bar in option) — 0.01 – 50 kPa — +/- 1.0% Rdg +1% F.S.
0.01 to 100.00 kPa — accuracy as above
0.01 > 100.00 kPa — accuracy as above
0.1 – 500.00 kPa — accuracy as above
0.1 – 1000.00 kPa — accuracy as above

Measurement range note
Measurement range: From 10% to 100% of the full scale.

Physical

• Weight: 7 Kg
• Dimensions (WxHxD): 250 x 150 x 360 mm

Electrical supply

• 24 VDC / 2 A or 100-240 VAC / 50 W

Temperature

• Operating: +5°C to +45°C
• Storage: 0°C to +60°C

Interface

• Graphic color screen with simple, intuitive menu-driven operator controls
• SMART KEY: programmable key with user functions

Air supply

• Command: 4 / 6 bar
• Pressure: 1 or 2 bar greater than test pressure
• Clean and dry air required
• Air quality standard to be applied: ISO 8573-1

Technology
As a stripped down version of the previous technology, standard pressure decay compares the pressure on the part with the atmospheric pressure. This technology is used when the application does not require very high accuracy or very fast cycle time. The method is based on measurement of a small variation or drop in pressure with a piezo sensor.

Factsheets
Detailed information about the F600 HP including features and specifications is available in the English datasheet (F600 HP Brochures – English).

Technical specifications

• Model: F600HP
• Pressure test capability: from 5 kPa to 1000 kPa (pressure decay) depending on configuration
• Measurement ranges available: 0.01–5.00 kPa up to 0.1–1000.00 kPa (see measurement table)
• Measurement accuracy: +/- 1.0% reading + 1% F.S. (typical, per table rows)
• Max mechanical pressure options: up to 17.5 MPa (20 MPa option) / up to 175 bar (200 bar option)
• Programs: 128 programmable test programs
• Mechanical regulation options: 2 MPa, 5 MPa, 10 MPa, 17.5 MPa
• Electronic regulation: 4 MPa
• Communication: RS232 (printer, Modbus RTU), USB slave (PC supervision), USB master (USB key)
• I/O: 6 inputs / 6 outputs, 24 V programmable
• Power: 24 VDC / 2 A or 100–240 VAC / 50 W
• Weight: 7 kg; Dimensions: 250 x 150 x 360 mm
• Operating temperature: +5°C to +45°C; Storage: 0°C to +60°C
• Air supply: command 4/6 bar; pressure 1–2 bar above test pressure; clean dry air per ISO 8573-1
• Compliance: ROHS
