Vacuum leak tester F28 LPV

absolute pressure decaypneumatichydraulic

Overview

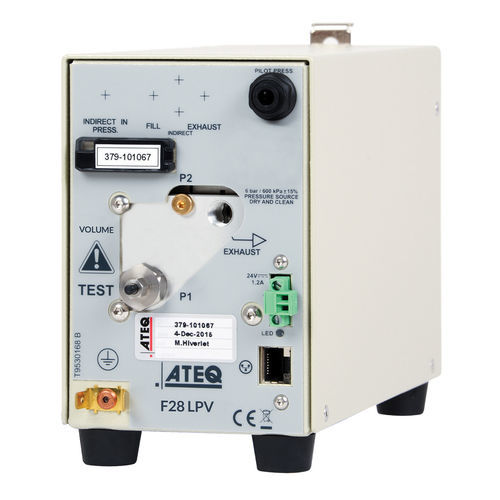

The F28 LPV is a vacuum decay / pressure decay leak tester from ATEQ’s F28 range. It is a compact, industrial-grade unit designed for installation close to the test part to maintain optimal measurement conditions. The unit is programmable and supervised via the F28 Control interface.

Applications

• Packaging and blister testing
• Watches and small consumer devices
• Mobile phones and electronic enclosures
• Pneumatic and hydraulic fittings

Key features

• Pressure decay leak measurement (vacuum)
• Water leak detection by evaporation under strong vacuum
• Smart pressure regulation without external regulator – auto fill (optional)
• Electronic regulation option
• Measurement units: Pa, Pa/s, sccm, µg/min (H2O)
• Compact overall dimensions: H 141.5 x L 225 x D 97 mm
• Integrated fill and dump valves
• Ethernet network support up to 50 modules (Modbus TCP/IP)
• DIN-rail mounting
• RoHS compliant

Measurement characteristics
Pressure drop measurement (absolute): range 0.05 to 110 kPa — resolution 1 Pa — accuracy*: 2% F.S.
Vacuum decay: range up to 2000 Pa — resolution 1 Pa — accuracy*: 2% F.S.
*Accuracy = linearity + repeatability + hysteresis

Technology
The standard pressure decay method compares the sealed part pressure with atmospheric pressure using a piezo pressure sensor. It detects small pressure variations and is suitable for applications where ultra-high accuracy or extremely short cycle times are not required.

Presentation

• Weight: approx. 3.5 kg

Electrical supply

• Voltage: 24 V DC / 1.6 A
• Main adapter included: 110–230 V AC

Air supply

• Clean, dry air required
• Air quality standard: ISO 8573-1
• Test pressure input requires an external regulator

Temperature

• Operating: +5 °C to +45 °C
• Storage: 0 °C to +60 °C

Technical specifications

• Model: F28 LPV
• Measurement principle: Vacuum decay / pressure decay (piezo sensor)
• Test pressure (absolute): 0.05 to 110 kPa; resolution 1 Pa; accuracy 2% F.S. (linearity + repeatability + hysteresis)
• Vacuum decay range: 2000 Pa; resolution 1 Pa; accuracy 2% F.S.
• Units available: Pa, Pa/s, sccm, µg/min (H2O)
• Dimensions (mm): H 141.5 x L 225 x D 97
• Weight: ~3.5 kg
• Power: 24 V DC / 1.6 A (110–230 V AC adapter included)
• Network: Ethernet (Modbus TCP/IP) up to 50 modules
• Mounting: DIN rail
• Integrated fill and dump valves
• Air: clean, dry air per ISO 8573-1; test pressure input needs external regulator
• Operating temperature: +5 °C to +45 °C; storage: 0 °C to +60 °C
• Compliance: RoHS
