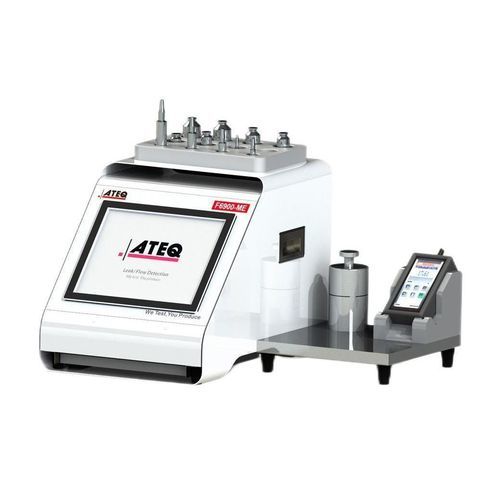

Vacuum leak tester F6900-EC

differential pressure decayfor the pharmaceutical industryfor ampoules

Overview
The F6900 EC is a vacuum-decay leak test machine designed for non-destructive integrity testing of containers. Intended for laboratory, offline and statistical analysis applications, the system follows ASTM F2338-09 and integrates ATEQ vacuum decay technology with an operator-friendly HMI for flexible testing workflows.

Applications

• Pharmaceutical manufacturing and QC
• Liquid-filled formats
• Ampoules
• BFS (blow-fill-seal)
• Bottles
• Carpules / cartridges

Features

• Online or offline operation modes
• Conforms to ASTM F2338-09 for non-destructive leak detection
• Stainless steel construction suitable for laboratory environments
• Test sensitivity < 1 µm
• Differential vacuum decay measurement method
• Non-invasive, non-destructive testing
• Compact benchtop footprint — 24 kg
• HMI with real-time test cycle diagram and intuitive menu

Options

• Leak flow calibrator
• Custom test chamber
• Specialized connectors and fixturing

Factsheets
F6900 EC brochure available in English with detailed features and specifications.

Technical specifications

• Weight: 24 Kg
• Dimensions (WxHxD): 450 x 550 x 356 mm
• Interface: Color graphic screen with intuitive menu-driven operator controls
• Electrical supply: 100-240 V AC / 50 W
• Air supply: Test pressure: Absolute 1 Torr; clean and dry air required; air quality standard: ISO 8573-1
• Operating temperature: +0 °C to +45 °C
• Storage temperature: 0 °C to +60 °C
• Material: Stainless steel (construction)
• Test method: Differential vacuum decay
• Test sensitivity: < 1 µm
