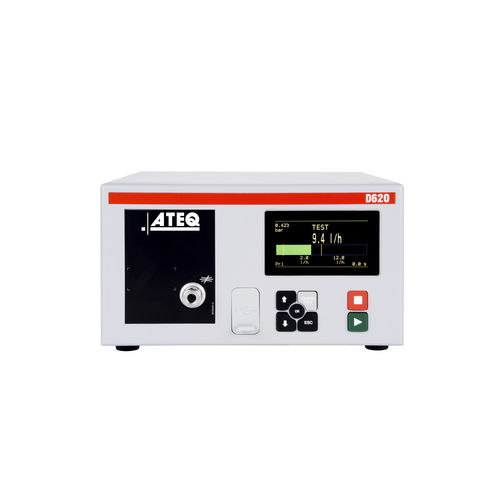

Flow leak tester D620

tabletopcontinuousautomatic

After more than 50 years, and 300,000 testers installed in more than 5,000 customers worldwide, ATEQ presents its revolutionnary flow tester: D620. New electronic module, new measurement module, new interface, new accessories… All has been made to improve your quality control. And yet, inside can be found the latest leak testing technics and technology that will garantee you the fastest and most accurate leak testing cycle on the market FEATURES • Flow measurement in direct or indirect testing • Continuous measuring mode • Wide flow measurement range • USA, S.I. and customer units • Measurement in standard or customised conditions • Recalculated flow at the nominal pressure • Measurement element fully integrated into one module • 128 programs • Mechanical or electronic regulator from vacuum to 10 bar • setting on line (via USB) • 2 languages (English + other one) • Manual calibration on front panel with calibrated leak • Data storage on internal memory or USB key ENVIRONMENT : ROHS standard FLEXIBLE COMMUNICATION FORMAT : • RS232: Printer, modbus RTU • Slave USB: PC supervision (WinAteq 300, sesame) • Master USB: USB key to transfert (parameters, results, …) • Option Fieldbus: Profibus, devicenet, profinet, Ethernet/IP, Modbus RTU OPTIONS • 9 inputs / 5 local outputs compatible with 5 series instruments • 6 inputs/ 6 outputs 24 V programmable for external automation • Electronic regulator • Dual pressure • Automatic calibration check • 2 pneumatic outputs for control of sealing connectors • Memory card for archiving results (1 million) TECHNOLOGY Sometimes a leak can be considered as a “small flow”, or a flow as a “big leak”.
