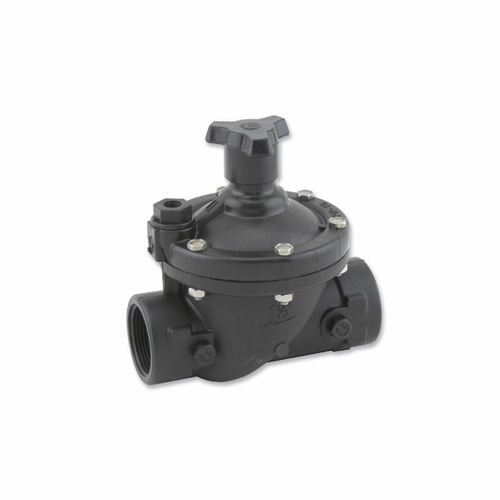

Diaphragm valve 205-M

hydraulically-operatedfor controlfor water

Overview
The BERMAD Hydraulic Control Valve IR-205-M is a hydraulically operated, diaphragm-actuated basic control valve that opens and closes in response to local or remote pressure commands. It is intended specifically for irrigation applications; manufacturer warranty is limited to the permitted use only.

Features & Benefits

• Line Pressure Drive, Hydraulically Controlled
  • Hydraulically controlled On/Off operation
• Composite Hydro-Efficient Globe Valve
  • Unobstructed flow path for high flow capacity
  • Single moving part for simplified hydraulics
  • Durable design resistant to chemicals and cavitation
• Unitized Flexible Diaphragm and Guided Plug
  • Consistent low-flow regulation performance
  • Prevents diaphragm erosion and distortion
• Fully Supported & Balanced Diaphragm
  • Requires low actuation pressure
• User-Friendly Design
  • Simple in-line inspection and service

Typical Applications

• Automated irrigation systems
• Distribution stations and heads
• Systems subject to fluctuating supply pressure
• Landscape irrigation

Additional Features

• Z : Manual selector
• 5 : Plastic test point

Technical Specifications

• Brand: BERMAD
• Model: IR-205-M
• Series: 200 Series
• Product type: Hydraulic Control Basic Valve (On/Off)
• Operation: Hydraulically operated, diaphragm actuated
• Drive: Line pressure driven
• Valve design: Composite hydro-efficient globe valve with unobstructed flow path
• Diaphragm: Unitized flexible, fully supported & balanced
• Serviceability: Simple in-line inspection and service
• Suitable for: Irrigation applications only (warranty limited to permitted use)
