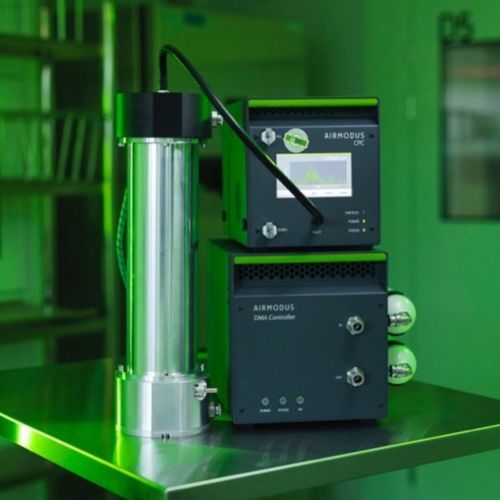

Condensation nanoparticle size analyzer A-SMPS

laboratorybenchtop

Overview
The Airmodus A-SMPS is a Scanning Mobility Particle Sizer pairing a Hauke‑type DMA with an Airmodus CPC. It delivers aerosol particle number size distributions using a fully transparent, open‑source inversion algorithm. The system supports continuous coverage (seamless extension with the A12 nCNC) and is designed to meet CEN/TS 17434 requirements; ACTRIS whitelist approval is pending and guaranteed within the warranty terms.

CPC detector selection

• A20‑CEN bCPC: ACTRIS + CEN compliant (nominal 10 nm)
• A30‑CEN: CEN compliant, compact option (nominal 10 nm)
• A20‑UF: Extended lower range to ~5 nm (S‑curve below SMPS range — negligible effect)

Key features and benefits

• Open‑source inversion algorithm for transparent data processing
• Single DMA column covers 5–1000 nm (depending on CPC)
• Closed‑loop sheath flow — no external vacuum pump for the SMPS platform
• CCN field calibration capability when used with an atomizer
• Designed for CEN/TS 17434 compliance with compatible CPCs
• ACTRIS whitelist application supported — approval guaranteed within warranty
• Seamless extension to >1 nm with A12 nCNC
• Multiple CPC detector options to match measurement needs

Applications and deployment
Suitable for laboratory research and outdoor field stations. When combined with the A12 nCNC, the A‑SMPS provides continuous particle size distribution from >1 nm to 1000 nm. It can also act as a field calibration system for CCN instruments when paired with an atomizer.

Technical information (table)
Measurement range: 5–1000 nm (depending on CPC); CEN‑compliant range: 10–800 nm.
Concentration (calibrated): 0–100,000 #/cm³ (single counting); up to 500,000 #/cm³ depending on CPC. Total measurable concentration up to 10^7 #/cm³.
Aerosol sample flow: 1 L/min (default); other sample flows depending on CPC choice.
Sheath air flow: 2–15 L/min (closed‑loop control).
DMA type: Hauke‑type (ACTRIS model), supports vertical or horizontal operation.
HV source: 5–10,000 V, both polarities.
Working fluid: depends on CPC (butanol or propylene glycol).
Sample conditions: Pressure 70–105 kPa; RH 0–95% non‑condensing.
Environmental conditions: Temperature 15–35°C; Pressure 70–105 kPa; RH 0–95% non‑condensing.
Communication: Analog in/out (BNC 0–10 V), Pulse out (BNC), USB Type B.
Software: Airmodus MultiLogger One4All with open‑source inversion algorithm.
Compatible CPCs: A20‑CEN, A30‑CEN, A20‑UF, A20‑HF, A23.
External vacuum: Not required for SMPS platform (closed‑loop). Individual CPC units require their own vacuum.
Power: External adapter 100–240 VAC 50/60 Hz, max 220 W; output 12 VDC, 21 A.
Dimensions & weight: 465 × 350 × 465 mm (H×W×L); 24.0 kg (system including CPC). 19" rack version available on request.
Neutralizer: Required for SMPS operation. Ni‑63 95 MBq (standard) or X‑ray 4.9 kV (alternative under development); sold separately.
Shipping: Temperature 0–40°C; RH <95% non‑condensing. Ship dry and upright.

Approvals & Certifications

• CEN/TS 17434 (when used with A20‑CEN or A30‑CEN detector)
• ACTRIS whitelist application pending — approval guaranteed within warranty terms

Technical specifications

• Model: A‑SMPS
• Manufacturer platform: Airmodus
• Particle size measurement: 5–1000 nm (depending on CPC); CEN: 10–800 nm
• Sample flow: 1 L/min (default)
• Sheath flow: 2–15 L/min (closed‑loop)
• Count concentration: 0–100,000 #/cm³ (single counting); up to 500,000 #/cm³ depending on CPC; total up to 10^7 #/cm³
• DMA type: Hauke‑type (ACTRIS model), vertical or horizontal
• HV range: 5–10,000 V (both polarities)
• Working fluid: butanol or propylene glycol (depends on CPC)
• Communications: Analog I/O (BNC 0–10 V), Pulse out (BNC), USB Type B
• Software: Airmodus MultiLogger One4All
• Power: External adapter 100–240 VAC 50/60 Hz, max 220 W; output 12 VDC, 21 A
• Dimensions (H×W×L): 465 × 350 × 465 mm; Weight: 24.0 kg (incl. CPC)
• Neutralizer: Ni‑63 95 MBq (standard) or X‑ray 4.9 kV (option)
• Operating environment: Temp 15–35°C; Pressure 70–105 kPa; RH 0–95% non‑condensing
• Shipping: 0–40°C; RH <95% non‑condensing; ship dry upright
