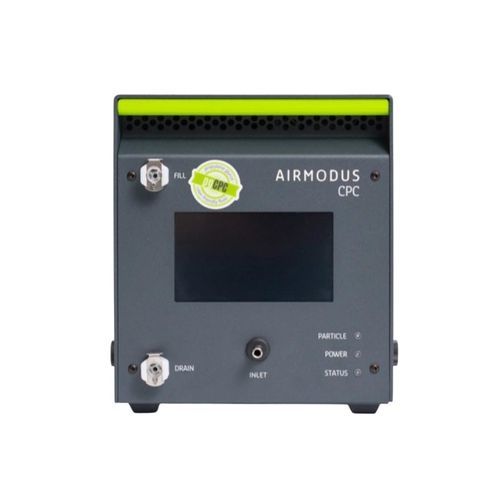

Air airborne particle counter A30 CPC

digitalcondensationUSB

Overview
The Airmodus A30 is a compact research-grade Condensation Particle Counter (CPC) platform providing a 0–500,000 #/cm³ concentration range in a pocket-sized instrument (4.9 kg) with low steady-state power (40 W). Suitable for fixed monitoring stations, portable/mobile platforms, PEMS systems and rack-integrated installations. Supports n-butanol or propylene glycol working fluids and includes an active water removal system. OEM variant and optional outdoor cabinet available for unattended operation.

Features and benefits

• Compact dimensions: 190 × 170 × 250 mm; weight 4.9 kg
• Low steady-state power: 40 W
• Compliant with EN 16976:2024 and dualCPC
• Measurement range up to 500,000 #/cm³ (single-particle counting)
• Operates with n-Butanol (>99.5%) or Propylene Glycol (>99%)
• Active water removal for field and mobile use
• OEM version and outdoor cabinet available

Main applications

• Airport ultrafine particle (UFP) monitoring (EU Directive 2024/2881)
• Automotive PEMS — full driving cycle on a single fill (PG variant)
• Cleanroom and semiconductor contamination monitoring
• Municipal and port air quality networks
• Atmospheric research and field campaigns

Technical information
Particle size range: 10 nm–2.5 µm (standard CEN calibration); custom cut-offs: 5–23 nm (butanol), 4–10 nm (PG).
Cut-off (Dp50%): 10 nm ±1 nm (CEN); Dp90% < 20 nm.
Concentration range: 0–500,000 #/cm³ (single-particle counting).
Aerosol inlet flow: nominal 1.0 lpm. Sample flow: nominal 0.2 lpm (bypass 0.8 lpm, critical orifice).
Response time: t95 < 1 s. False counts: < 0.001 #/cm³.
Working fluid: n-Butanol (>99.5%) or Propylene Glycol (>99%). Sample conditions: pressure 75–105 kPa; dew point < 15°C.
Environmental conditions: temperature 15–35°C; pressure 75–105 kPa; RH 0–95%.
Communication: Analog out (BNC), Pulse out (BNC), RS-232, Ethernet RJ45, USB type B. Optional: UIDEP, SD card.
Software: Airmodus MultiLogger (Windows 10+). Compatible with TSI 3082/3080 SMPS and AIM software.
External vacuum: 100–400 mbar at NTP (or <40% of inlet pressure).
Power: external adapter 100–240 VAC 50/60 Hz (max 100 W); steady-state 40 W; output 12 VDC 11.5 A.
Dimensions & weight: 190 × 170 × 250 mm; 4.9 kg. Shipping: 0–40°C; RH <95% non-condensing; ship upright.

Compliance / Certifications

• EN 16976:2024
• dualCPC compliant

Characteristics / technical specifications

• Model: A30 CPC
• Manufacturer / brand: Airmodus
• Concentration range: 0–500,000 #/cm³
• Particle size range (standard): 10 nm–2.5 µm
• Cut-off Dp50%: 10 nm ±1 nm (CEN)
• Sample flow: 0.2 lpm (nominal); inlet flow: 1.0 lpm
• Response time: t95 < 1 s
• False count rate: < 0.001 #/cm³
• Working fluids: n-Butanol (>99.5%) or Propylene Glycol (>99%)
• Communications: Analog, Pulse (BNC), RS-232, Ethernet RJ45, USB B; optional UIDEP/SD
• Power: external adapter 100–240 VAC; steady-state 40 W; output 12 VDC 11.5 A
• Dimensions / weight: 190 × 170 × 250 mm; 4.9 kg
