Volume flow meter AFM

for airportablewith battery

Overview

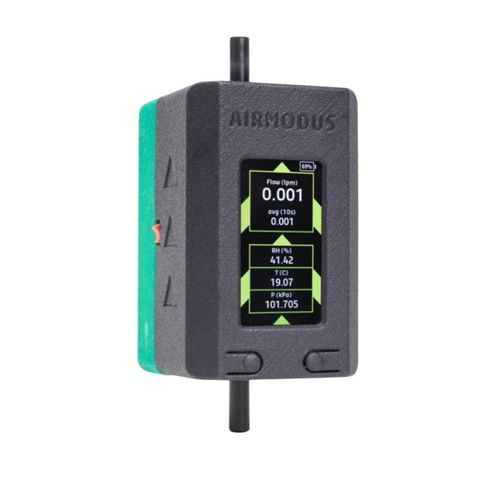

The Airmodus AFM is a portable, battery-powered aerosol flow meter for rapid inline flow verification of CPCs and SMPS systems in the field. It displays volumetric flow (0–10 lpm), ambient relative humidity (RH), temperature and pressure simultaneously on a single OLED screen. The AFM connects directly to CPC sampling lines via standard 6 mm tubing and records data to Airmodus MultiLogger for traceability.

Use case

• Monthly flow verification for CPCs and SMPS systems
• Field diagnostics during installation and service visits
• Inline flow monitoring during experiments and test campaigns

Features and benefits

• Volumetric flow measurement range: 0–10 lpm
• OLED display shows RH, temperature, pressure and flow simultaneously
• Compatible with Airmodus MultiLogger for data logging and traceability
• Battery-powered, rechargeable for portable field operation
• Standard 6 mm tubing inlet/outlet for direct CPC connection
• Compact and lightweight for easy transport

Compatibility and integration

• Direct compatibility with Airmodus CPCs (A20, A30), A‑SMPS and A12 nCNC
• Data logging and export via Airmodus MultiLogger

Technical specifications

• Measurement range: 0–10 lpm (volumetric flow)
• Display: OLED showing RH, temperature, pressure and flow simultaneously
• Fittings: 6 mm tubing inlet/outlet
• Power: Battery-powered (rechargeable)
• Software: Airmodus MultiLogger compatible
• Recommended use: Monthly verification, field diagnostics, inline monitoring
• Detailed specifications: TBD — full datasheet to be confirmed
