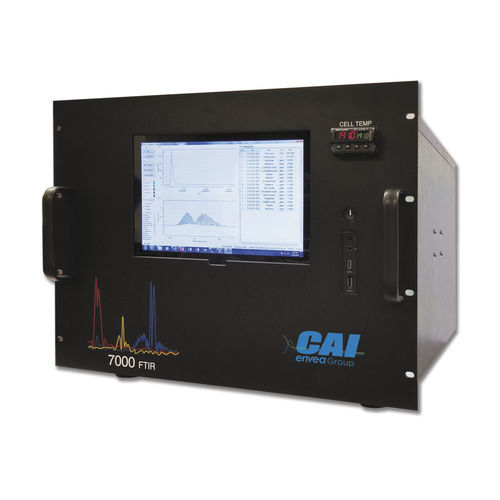

Gas analyzer 7000 FTIR

monitoringautomotivespectrum

Overview The ENVEA 7000 FTIR analyzer provides fast, continuous and stable analysis of virtually any gas with an infrared absorption spectrum. The 7000 FTIR uses Fourier transform infrared spectroscopy and PLS chemometrics to measure multiple gas components simultaneously through a rugged interferometer and a 10.2 m multi-reflection heated sample cell, delivering accurate concentration results.

Features and benefits

• Rocksolid™ interferometer with gold mirrors
• 1 Hz live data output and live color-coded spectrum
• 0.5 cm⁻¹ spectral resolution
• Heated sample cell (50 °C or 191 °C) with 10.2 m optical path
• High sensitivity from low ppb to high % ranges
• Pressure compensation and no liquid nitrogen required
• Capability to measure 20+ gases simultaneously

Options

• Analog output module
• Intelligent multi-point sampler
• Sample handling accessories
• Low-flow configuration
• System integration services

Main applications

• Automotive emissions testing
• Diesel exhaust monitoring
• CEM (continuous emissions monitoring)
• Ammonia slip and SCR inlet/outlet monitoring
• Process monitoring and control
• Greenhouse gas measurement

Technical information Interferometer: Rocksolid™ permanent alignment with cube-corner reflectors and non-wear bearing; Detector type: MCT-A; Response time: <1 s to 5 min depending on sensitivity; Spectral resolution: 0.5 to 128 cm⁻¹; Spectral range: 305–7500 cm⁻¹; Control: PC (Windows XP or higher); Sample flow: typically 0.2–5 lpm; Ambient: 5 °C–40 °C, <90% RH non-condensing; Power: 115 VAC/60 Hz or 230 VAC/50 Hz; Dimensions (HxWxD): 267 x 483 x 712 mm; Weight: approx. 57.6 kg.

Approvals & certifications

• CE
• U.S. EPA compliance: 40 CFR Part 1065
• UL 61010-1 conformity; CAN/CSA C22.2 No. 61010.1 certified
• ECE R49-06 compliant

Technical specifications

• Model/series: 7000 FTIR
• Brand: ENVEA
• Measurement technique: FTIR
• Optical path: 10.2 m multi-reflection gas cell
• Spectral range: 305–7500 cm⁻¹
• Resolution: down to 0.5 cm⁻¹
• Detector: MCT-A
• Response time: <1 s to 5 min (depending on sensitivity)
• Sample flow: 0.2–5 lpm (typical)
• Operating temperature: 5 °C–40 °C
• Power: 115 VAC/60 Hz or 230 VAC/50 Hz
• Dimensions/weight: 267 x 483 x 712 mm / ~57.6 kg
• Measured gases: >20 simultaneously; measurement ranges from low ppb to %
