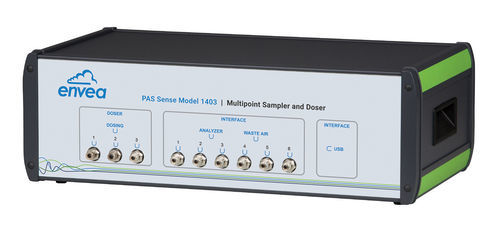

Stainless steel air sampler PAS Sense 1403

Overview
The ENVEA PAS Sense 1403 multipoint air sampler and tracer-gas doser connects via USB to the PAS Sense 1512 photoacoustic gas monitor to enable flexible, remote air monitoring and ventilation studies. It collects air samples from up to six locations within 50 m and delivers tracer gas to up to three locations for ventilation and air-exchange analysis. Automatic calibration and self-check routines simplify verification and ensure reliable operation.

Features and benefits

• Full remote control from a PC using 7650 Basic Ventilation Software or 7651 Advanced Ventilation Software
• Automatic calculation of tracer-gas volume delivered to dosing locations
• Factory-calibrated dosing system
• Built-in self-test and diagnostics
• Pneumatic components made from AISI-316 stainless steel and PTFE tubing to minimize gas absorption

Main applications

• Multipoint air sampling (up to 6 points) and sample delivery to a PAS Sense 1512 photoacoustic gas monitor
• Tracer-gas delivery to up to 3 locations for ventilation and air-exchange measurements

Technical information
Sampling system
Values below assume tubing length 50 m and internal diameter 3 mm. Pump performance (sampling): working pump suction 20 kPa; volume flow rate 15 ml/s; sample transport speed ≈ 2 m/s. Three-way valve routes samples to waste air outlet or to the connected 1512. Minimum pressure, blocked airways: 40 kPa.

Dosing system
Data assume use of SF6 or R134a as tracer gas and nylon tubing 50 m × 3 mm ID. Pump performance (dosing): minimum working pump pressure 10 kPa; supplementary air flow per dosing channel 4 ml/s. Tracer gas supply: pressurised cylinder; supply pressure 300 kPa ±10% (absolute).

Mass flow controller
Tracer-gas delivery is controlled by a mass flow controller. At 300 kPa abs: SF6 ≈ 1.4–17.5 ml/s; R134a ≈ 1.5–18.5 ml/s. Maximum delivery time for a dose over 50 m through standard tubing: ~1 minute. Dosage calculation accuracy: ±2%.

Power supply
Voltage: 100–240 VAC, 50–60 Hz; power consumption: 0.9 A.

Dimensions & weight
155 x 445 x 260 mm (6.1 x 17.5 x 10.2 in); weight: 10 kg (22 lbs).

Approvals & certifications
Compliance: CE (EMC and Low Voltage Directives); EN 61010-1 (3rd Ed., 2010); EN 61326-1:2013. Environmental conditions per IEC 61010-1: altitude ≤ 2000 m; operating temperature 5 °C to 40 °C; storage −25 °C to 55 °C; max RH 80% up to 31 °C, linearly decreasing to 50% at 40 °C; pollution degree 2; overvoltage category II (indoor use).

Technical specifications

• Model: PAS Sense 1403
• Manufacturer: ENVEA
• Connection: USB to PAS Sense 1512
• Sampling points: up to 6 (within 50 m tubing)
• Tracer-gas dosing channels: up to 3
• Suggested tubing for data above: 50 m length, 3 mm ID
• Pneumatics: AISI-316 stainless steel and PTFE tubing
• Pump suction (sampling): 20 kPa; flow: 15 ml/s; sample transport speed: ~2 m/s; blocked airway minimum pressure: 40 kPa
• Minimum working pump pressure (dosing): 10 kPa; supplementary air flow per dosing channel: 4 ml/s
• Tracer gas supply pressure: 300 kPa ±10% abs
• Mass flow controller ranges (at 300 kPa): SF6 ≈ 1.4–17.5 ml/s; R134a ≈ 1.5–18.5 ml/s
• Dosage accuracy: ±2%
• Max delivery time for dose over 50 m: ~1 minute
• Power: 100–240 VAC, 50–60 Hz, 0.9 A
• Dimensions (HxWxD): 155 x 445 x 260 mm
• Weight: 10 kg
• Certifications: CE, EN 61010-1, EN 61326-1
