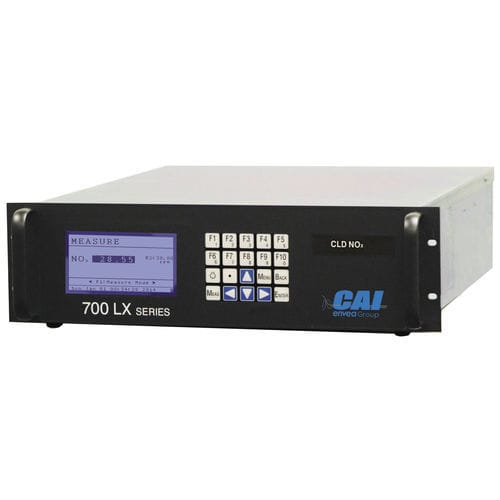

Gas analyzer 700 LX CLD NOx

processfor pharmaceutical productsconcentration

Overview
The 700 LX CLD analyzer applies chemiluminescence (CLD) to determine NO and NOx concentrations in gas samples. In NO mode ozone reacts with nitric oxide to form NO2, O2 and light proportional to NO2; the emitted light is detected by a photodiode. In NOx mode NO2 is reduced to NO to provide total NOx measurement.

Features and benefits

• Measurement range: 3 ppm to 3,000 ppm full scale (higher ranges on request)
• Three measurement modes: NO, NOx and NO/NO2/NOx
• Automatic calibration and autoranging
• Fast response time for process control
• Robust Linux-based operating system
• Electronic control of sample and ozone flows
• No vacuum pump required
• Comprehensive diagnostics and status reporting

Options

• Internal sample pump
• Internal calibration solenoid valves
• Internal ozone pump
• Low flow configuration
• Low pressure configuration
• 19" rack mount slides

Main applications

• Combustion efficiency monitoring
• Fuel cell gas analysis
• Turbine and generator feedback control
• Ammonia slip detection
• Process chemical gas analysis
• Personnel safety monitoring
• Pharmaceutical process control
• Vehicle emissions testing

Technical specifications

• Measuring ranges: NO/NOx: 0–3 to 0–3,000 ppm (configurable)
• Detector: Photodiode
• Response time: Typically < 3 s to 90% full scale
• Repeatability: < 0.5% of full scale
• Linearity: < 1% of full scale
• Accuracy: < 1% full scale
• Precision: < 0.5% full scale
• Noise: < 0.5% of full scale
• Zero & span drift: < 1% FS per 24 h
• CO2 effect: < 2% with 10% CO2
• H2O effect: < 1% with 1% H2O
• Interference: CO, HCN, SO2, NH3, N2O not detectable at 100 ppb
• Standard outputs: Voltage, current, RS-232 (AK protocol), TCP/IP (MODBUS and AK protocol)
• Sample temperature (non-condensing): up to 50°C
• Ambient temperature & humidity: 5–40°C, < 90% RH (non-condensing)
• Dimensions (HxWxD): 133.4 x 482.6 x 584.2 mm (5.25 x 19 x 23 in); Weight: 20.4 kg (45 lbs)

Approvals and certifications

• CE
• Compliant with US EPA 40 CFR Part 1065
• UL 61010-1; certified to CAN/CSA C22.2 No. 61010.1
• ECE R49-06 compliant
