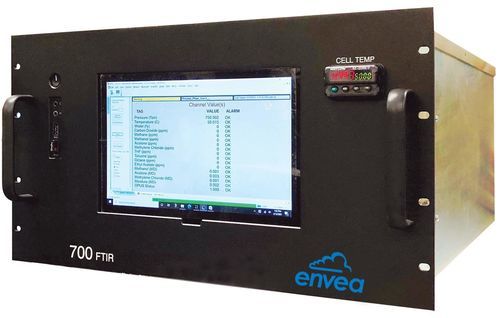

Gas analyzer 700 FTIR

monitoringbeverageprocess

Product overview
The 700 FTIR analyzer delivers fast, accurate measurement of virtually any gas within an infrared absorption spectrum. Based on Fourier Transform Infrared (FTIR) spectroscopy, non-symmetrical gas-phase molecules absorb IR light, causing molecular bonds to stretch, bend or rotate; this absorption is used to measure and quantify several chemical components simultaneously.

Features and benefits

• Fast and simultaneous measurements of up to 20 parameters
• Designed to measure wet and corrosive sample gases, including trace concentrations
• Suitable for hot/wet measurement of soluble gases such as HCl, HF, NH3
• Excellent calibration stability
• Automatic correction of spectral interferences
• High accuracy and reliability
• Rugged design; insensitive to vibrations
• Low maintenance required

Main applications

• Process control
• Stack gases (CEM/MACT)
• VOC abatement / scrubber efficiency monitoring
• Vehicle emissions
• Ammonia slip monitoring
• Gas purity analysis
• Agricultural emissions
• Greenhouse gas monitoring
• Biomass / landfill gas analysis
• Beverage CO2 analysis
• Combustion efficiency monitoring
• DRE — Destruction/Reduction Efficiency performance monitoring
• Custom applications

Technical information (table)
Analysis Method: Fourier Transform Infrared (FTIR)
Components: Multiple gases
Path Length: 10.2 m
Volume: 550 cm3
Dimensions (in.): 19W x 11H x 28D
Maximum Resolution: 0.8 cm-1
Gas Cell Temperature: 50°C or 191°C
Flow Rate Range: 1 – 10+ lpm
Recommended Flow Range: 3.5 lpm
Best Fit: PPB to low % levels
Repeatability: Generally within 1% at 100 times LOD
Zero drift: ± 1% of F.S.
Span drift: ± 1% of F.S.
Linearity: 10,000 times LOD or better
Lower detectable limit: Low to mid level ppb
Response time: 10 seconds
Interferometer resolution: 0.8 cm-1
Measurement cell: 316 SS
Power supply: 115/230 VAC, 50-60 Hz
Digital outputs: Modbus TCP/IP, 0-10 VDC, 4-20 mA
Weight: 100 lbs (46 kg) approximate
Operating temperature: 50°C or 191°C
Reference laser: Diode
Source: Silicon Carbide

Technical characteristics / specifications

• Analysis method: Fourier Transform Infrared (FTIR)
• Multi-component capability: measures up to 20 parameters simultaneously
• Path length: 10.2 m
• Measurement volume: 550 cm3
• Measurement cell material: 316 stainless steel
• Gas cell temperature options: 50°C or 191°C
• Flow rate range: 1 – 10+ lpm (recommended 3.5 lpm)
• Response time: 10 seconds
• Lower detectable limit: low to mid ppb
• Maximum resolution / interferometer resolution: 0.8 cm-1
• Repeatability: typically within 1% at 100x LOD
• Zero / span drift: ±1% of full scale
• Linearity: up to 10,000 times LOD
• Power supply: 115/230 VAC, 50–60 Hz
• Digital outputs: Modbus TCP/IP, 0–10 VDC, 4–20 mA
• Weight: ~100 lbs (46 kg)
• Reference laser: diode; source: silicon carbide
