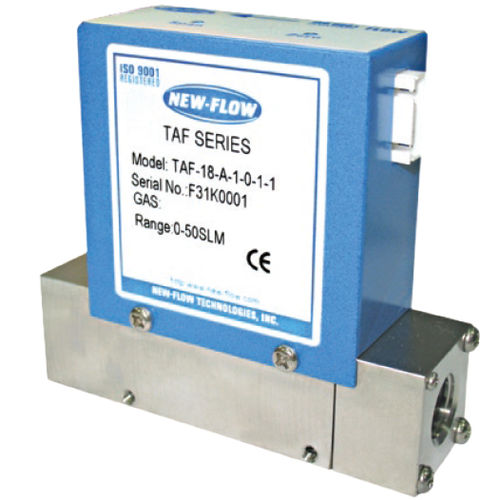

Thermal mass flow meter TAF

for gasin-linestainless steel

Economy Type ±1.5% Accuracy Linear Output Thermal Technology For Using in Non Corrosive gas For Flow Rates up to 50 SLM The NEW-FLOW Thermal Mass Flow Meters provide high performance. Thermal Technology offers advantages in accuracy, sensitivity and turn quality components and the latest technology are combined to provide reliable, compact meters. The TAF Sériés cornes without an LCD display, and corne with linear 0-5 VDC output. The TAF Sériés measures the mass flow rate of gases in 17 ranges from 0-10 SCCM to 0-50 SLM as shown in the range table. Technical Data Wetted Material: Standard flowbody- 316 Stainless Steel O-ring: Viton or FFKM available Output Signal: 0-5 VDC Linear min. load 1000Q Input Power: 24 VDC, 15 VDC and 12 VDC available Accuracy: ±1.5% F.S (for 10 SCCM - 5 SLM, including linearity) ±5% F.S (0-25% Flow Range) ±2% F.S (25-100% Flow Range) Turn Down Ratio: 50 : 1 Repeatability: ±0.15% FS or better Electric Connection: 5 Pin post header (provide with mating connector) Process connection: l/4"NPT Female Range: 0-10 SCCM to 0-50 SLM Minimum Pressure: 40” H2O Max. Pressure: 500 PSIG Température Range: 0-50 °C Response Time: 1 Second Temp. Coefficient: 0.05% Full scale per 1°C or better Pressure Coefficient: 0.01% Full scale per PSIG or better Weight: app. 0.5 kg
