Variable-area flow meter PF
volumefor waterfor gas

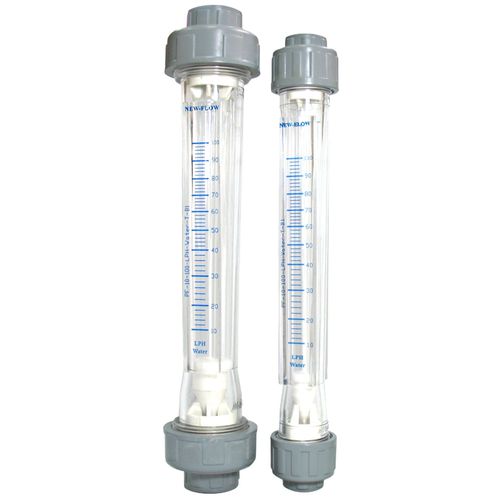

Variable-area flow meter - PF - Golden Mountain Enterprise - volume / for water / for gas
Variable-area flow meter - PF - Golden Mountain Enterprise - volume / for water / for gas
Variable-area flow meter - PF - Golden Mountain Enterprise - volume / for water / for gas - image - 2
Add to favorites
Compare this product
Go to the Golden Mountain Enterprise website for more information

Characteristics

Technology
variable-area
Type
volume
Fluid
for water, for gas, for air
Pipe diameter
DN50 - 2", DN15 - 1/2"
Installation
in metering tube
Material
stainless steel, plastic, PVC, polysulfone
Applications
industrial
Volumetric flow rate

Min.: 4 l/h
(1.0567 us gal/h)

Max.: 120 l/h
(31.7006 us gal/h)

Process temperature

Min.: -10 °C
(14 °F)

Max.: 110 °C
(230 °F)

Process pressure

1.2 MPa, 2 MPa

Precision

3 %

Description

Technical Data Service: Water, waste water, air gases, chemical process system, industrial flow system Measuring Range: Refer to range table Accuracy: ±3% F.S Scale Unit: Liquid-LPM, LPH, GPH; Gases-NLPM, NM3/H, SCFH Wetted Parts Material: Body-Polysulfone (PSU), Polycarbonate (P.C) available ; Float-PVDF, PVC, Stainless steel available Max. Working Pressure Limit: 1.2 MPa (12 kg/cm2@25℃) Max. Test Pressure: 2.0 MPa (20 kg/cm2@25℃) Max. Working Temperature Limit: -10℃ to 60℃ (for PC body: Max. 6 bar@60℃) ; -10℃ to 110℃ (for Polysulfone body: Max. 1 bar@100℃
