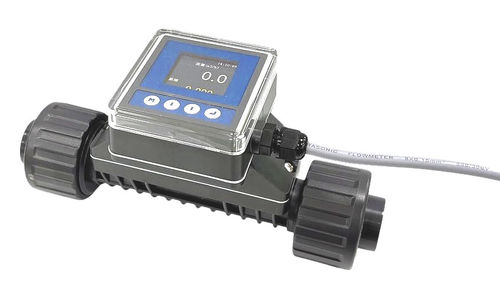

Ultrasonic flow meter UFM

for waterfor oilDN25 - 1"

Easy Installation Full straight pipe No pressure loss The main application is in the measurement and control of water (tap water, pure water, ultrapure water). Measurable Media -The medium has a stable flow rate in pipeline -The pressure is maintained at 0.3MPa -No bubbles (or cavitation) generated by flow -Fluid type of water, seawater, oil, and others are available -Negative flow measuring the reverse flow rate on option Technical Data Flow Velocity: 0.1m/s~5.0m/s Accuracy: ±1.0% (for ±0.3m/s ~ 5.0m/s) Repeatability: 0.4% Response Time: 500ms Output Signal: 4~20mA, maximum load 600Ω Power Supply: 24VDC @3W Cable Length: 2M standard; maximum 20M Button: Four touch buttons Display: LCD display, 1.54" 240*240 IPS (four-way rotation for easy reading) Unit: M3/H, LPM, mL/min, GPM, LPH (default uni: LPM) Totalizer: 7 digital Data Storage: Totalizer for Daily, monthly and annual; data can be saved for 10 years without loss Application: water, solutions, chemical reagents (impurities4%) etc.s Ambient Temperature: -10~50℃ Working Temperature Limit: 0~60℃ Process Connection Size: Pipe segment integrated, PVC-U union (flexible joint) 0D20(DN15-1/2"), 0D25(DN20-3/4"), 0D32(DN25-1"), 0D40(DN32-1-1/2") Ambient Humidity: 0~95% relative humidity, non-condensing Applicable Viscosity: <300CST (mm2/s) Protection Class: IP66
