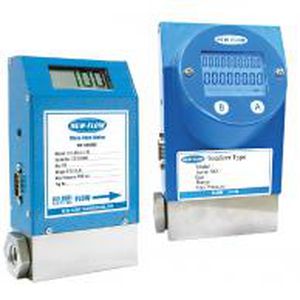

Thermal flow meter TLF

massfor corrosive fluidsfor gas

±1% Accuracy Linear Output Thermal Technology For Using in Non Corrosive Gas For Flow Rates up to 100 SLM Power Supply Included The NEW-FLOW Thermomal Mass Flow Meters provide high performance. Thermal Technology offers advantages in accuracy, sensitivity and turn quality components and the latest technology are combined to provide reliable, compact meters and controllers. The TLF Series comes two type: With or Without an LCD Display; or Flow Rate with Totalizer LCD Display. All models come with linear 0-5VDC and 4-20mA output. The TLF Series measures the mass flow rate of gases in 23 ranges from 0-10 SCCM to 0-100 SLM as shown in the range table. Technical Data Type: Without LCD Display; Flow Rate with LCD Display & Blue Back Lighted; Flow Rate with Totalizer LCD Display & Blue Back Lighted Wetted Parts Material: Standard flowbody-SS316, Tapcon, option available. O-ring: Viton or FFKM available Output Signal: 0~5 VDC Linear min. load 1000Ω or 4~20mA Linear, loop resistance 500Ω Input Power: 24VDC standard; optional power supply 15VDC 115VAC, 220VAC@500mA Accuracy: ±1%F.S. (including linearity) Turn Down Ratio: 100:1 Repeatability: ±0.15%F.S. or Better Electric Connection: 9 Pin Sub "D" Process Connection: 1/4"NPT female Range: 0-10 SCCM to 0-100 SLM Minimum Pressure: 40" H2O Max. Pressure: SS316-500psig; Tapcon-250psig Temperature Range: 0~50℃ Response Time: 1 Second Temp. Coefficient: 0.05% Full Scale per 1℃ or Better Pressure Coefficient: 0.01% Full Scale per PSIG or Better Flow Unit: Kg, GAL, NL, Nm3, cc, L, M3 (Flow rate with LCD display: Label by manufacturer; Flow rate with totalizer LCD display: Unit LCD display) Weight: app. 1.08kg with power supply app. 1.22kg with power supply & totalizer
