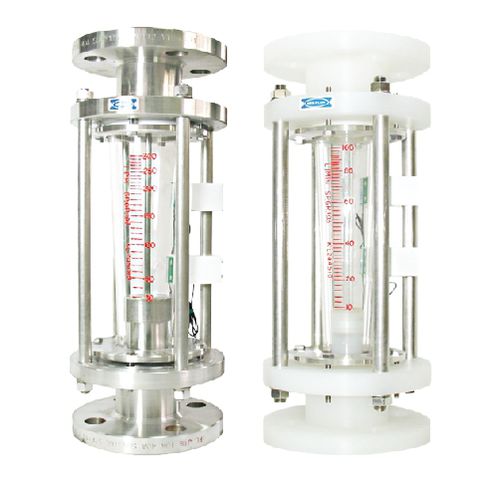

Variable-area flow meter N_Type

volumefor liquidsfor gas

Operation Principle The variable area flow meter content a float & taper tube. The fluid flow through the taper tube and force up to the float. The flow rate is measured as a function of the area of the opening. This area displayed as the float that is free to move to produce the varying area. Technical Data A. Measuring The Flow Rate For -Gases & Liquid -Chemical process system -Water treatment system -Industrial flow system B. Service Condition -Viscosity: ≦3cP -Max. working temperature: Metal:100℃; Plastic:60℃ -Max. working pressure:(1) Body material: NS: 15kg/cm2, NI: 15kg/cm2, NV: 6kg/cm2 (2) Glass tube: Borosilicate glass 6kg/cm2 for 10A~50A; 5kg/cm2 for 65A~80A; 4kg/cm2 for 100A~150A (3) P.C tube: 10kg/cm2, Instant pressure: 15kg/cm2 C. Alarm Switch Available(N.O) -Switch rating: AC 125V 0.5A / DC 100V 10W / Max. DC 250V < 40mA D. Accuracy: ±2.5%F.S
