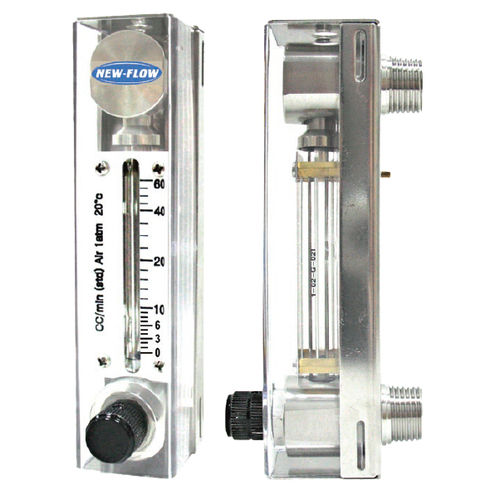

Variable-area flow meter SM series
for airfor liquidsin metering tube

variable-area flow meter
variable-area flow meter
variable-area flow meter
Add to favorites
Compare this product


Characteristics

Technology
variable-area
Fluid
for air, for liquids
Mounting
in metering tube
Material
glass
Process pressure

200 psi

Process temperature

95 °C (203 °F)

Description

The variable area flow meter content a float & taper tube. The fluid flow through the taper tube and force up to the float. The flow rate is measured as a function of the area of the opening. This area displayed as the float that is free to move to produce the varying area. Technical Data Service: Gases (Air) & Liquid (Water) Wetted parts materaiI: Body: SS316 O-ring: Viton, others on request Metering tube: Borosilicate glass Needle valve: SS316 Float: Glass, Sapphire, Stainless Steel, Carboloy, Tantalum Mounting: Horizontal position (Bottom to Top) Connection size: W’NPT female, needle valve available Max. working température: 95°C Max. working pressure: Glass tube- 200psig (14kg/cm2) Accuracy: ±3% F.S; repeat ability 1% Weight: 0.5-0.6 kg
