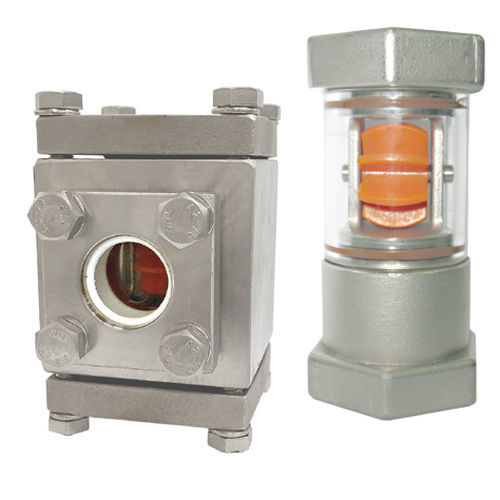

Stainless steel sight glass NAM

brassthreaded

NAM is used for mounting in pipes for fluids. The instruments are equipped with female threads at inlet and outlet and can be supplied with either brass or stainless steel fittings. Technical Data Self Clearing Function Available Material: Body-SS316L; Tube Housing-Glass; O-Ring-Viton, NBR available Rotor-POM (Orange), PP+10% glass fiber (Yellow), PPS+40% glass fiber (Dark Brown), PVDF (Red or White) available; Rotor Guide-SS316; Thread Connection-SS316 Viscosity: 1-150mm2/s Indication Range: Minimum 0.4~4 L/Min; Maximum 8~100 L/Min for water Max. Pressure: SS316L body: 16bar @20℃; High pressure type: 80bar @20℃ Max. Temperature: SS316L body: -5℃~+150℃; Rotors: Please refer to the Optional for Rotors Connection Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2" female PF or NPT available High pressure with or without rotor: 1/2", 3/4" and 1" female PF or NPT available
