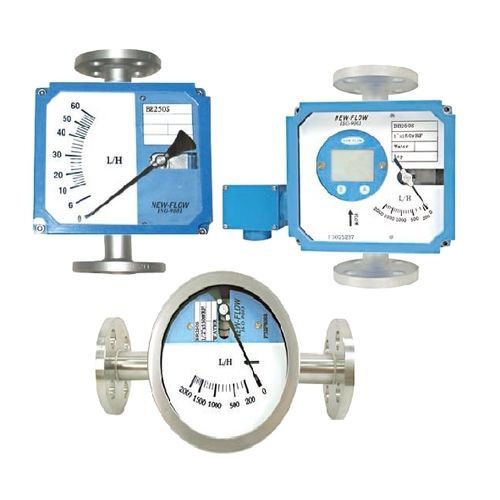

Variable-area flow meter BR250S series

magneticinductivefor liquids

Technical Data BR250S for high flows of gas, liquid, steam and oil Case Material: Aluminum alloy case with paint; SS316 available Body Wetted Parts Material: SS316, others on request, indication via magnetic coupling (no sealed) Lens Material: Safety Glass Scales Calibrated: in l/h, m3/h, kg/h, %, etc. Flow Rates For: - - Water: 30 l/h up to 250,000 l/h (spécial ranges on request) - - Air: 0.8 Nm3/h up to 1,200 Nm3/h (spécial ranges on request) Connection Type: Thread Type, Flange Type or others available Connection Size: Vi"~6" Mounting: Vertical and Horizontal available Mounting Length: 250mm standard for size Va"~5”, 300mm standard for size 6”; Spécial length is on request Protection Class: Weather Proof IP66 / IP68 or Explosion proof available Accuracy: ±2.5% F.S (±2.0% F.S option) Max. Pressure: 40 kg/cm2 (standard); Option: up to 100 kg/cm2 Working Température: -50°C to +200°C (standard); up to 400°C on request Option: Switch available (Micro switch 5A/125VAC. 5A/250VAC, 2A/30VDC); Adjustable Reed alarm switch available (form A bistable type, N.O. type); Adjustable Inductive alarm switch available; 4~20mA (2-wires) analog output available LCD Display: - - Totalizer 10 Digital (Top) / Flow Rate 8 Digital (Bottom) - - Analog Output Available: 4~20mA (2-wires) - - Power Supply: 24 VDC *HART® Communication: available Two Wire Transmitter with HART® Protocol: -Galvanic Isolation -Suitable for application in SIL 2 installations
