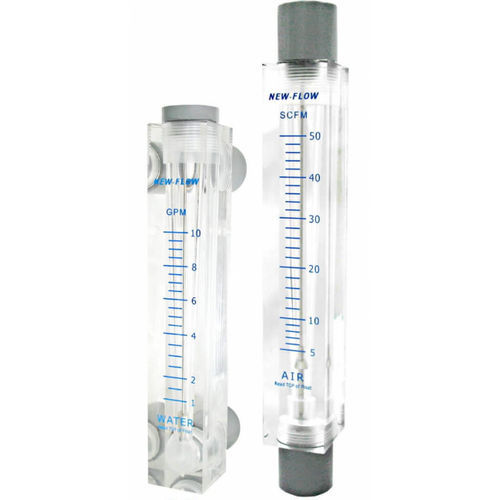

Variable-area flow meter FAC300 seriesfor liquidsfor waterfor air
Add to favorites
Compare this product
Characteristics
- Technology
- variable-area
- Fluid
- for liquids, for water, for air
- Installation
- in metering tube, vertical
- Material
- stainless steel, polypropylene, plastic
- Volumetric flow rate
Max.: 90 l/min (23.8 us gal/min)
Min.: 2 l/min (0.5 us gal/min)
- Process temperature
Max.: 45 °C (113 °F)
Min.: 0 °C (32 °F)
- Process pressure
120 psi
Description
Technical Data
Service: Water, Liquid or Air
Wetted parts material: Body-Acrylic, Plastic (POLYPROPYLENE), O-ring- EPDM
Float Guide: 316 stainless Steel
Connection material: POLYPROPYLENE
Température & pressure limits: 120 psig (8.4 bar) @100°F (38°C)
Température limited: 0-45°C Accuracy: ±3% full scale Mounting: vertical position Weight: 0.7 kg
Catalogs
FAC300
1 Pages
