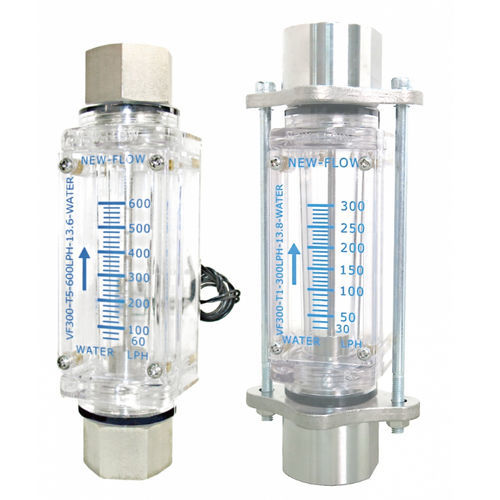

Variable-area flow meter VF300 volumefor waterfor air
Add to favorites
Compare this product
Characteristics
- Technology
- variable-area
- Type
- volume
- Fluid
- for water, for air
- Installation
- vertical
- Material
- plastic, polysulfone
- Supply voltage
- DC, AC
- Other characteristics
- reed switch
- Volumetric flow rate
Max.: 600 l/h
(158.5032 us gal/h)Min.: 5 l/h
(1.3209 us gal/h)- Process temperature
Max.: 100 °C
(212 °F)Min.: -10 °C
(14 °F)- Process pressure
1,200,000 Pa
(174.05 psi)- Precision
5 %
Description
Technical Data
Service: Water, Air
Wetted Parts Material: Body: Polycarbonate (P.C); Polysulfone (PSU) available
O-Ring: Viton
Float: SS316
Connection: SS316
Connection Size: 3/8", 1/2", 3/4"NPT female available
Mounting: Vertical position
Max. Working Pressure Limit: 1.2 MPa (12kg/cm2)
Max. Test Pressure: 2.0 MPa (20kg/cm2) (water 25℃)
Max. Working Temperature Limit: -10℃ to 60℃ (for PC body); -10℃ to 110℃ (for PSU body)
Accuracy : ±5% full scale
Alarm Switch: One or Two setting points, form A N.O. type bistable reed switch
Switch Rating: AC 125V 0.5A / DC 100V 10W / Max. DC 250V < 40mA
Weight: 0.3~0.4kg (Contact setting point should be within 10% to 80% of FS)
