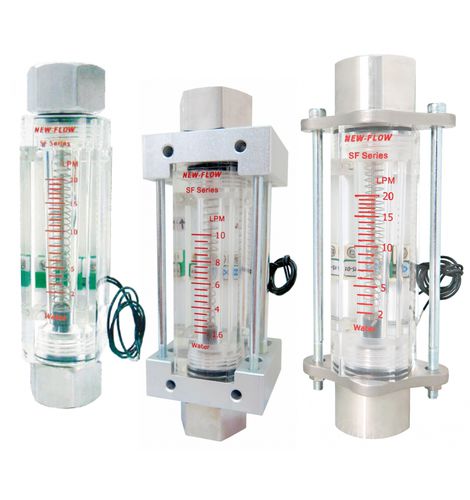

Variable-area flow meter SF100for liquidsfor oilplastic tube

variable-area flow meter
variable-area flow meter
variable-area flow meter
variable-area flow meter
Add to favorites
Compare this product
indicative price

Characteristics

Technology
variable-area
Fluid
for liquids, for oil
Other characteristics
plastic tube, stainless steel, vertical, top-mounted, horizontal
Process pressure

10 bar (145.04 psi)

Process temperature

Min.: -24 °C (-11 °F)

Max.: 54 °C (129 °F)

Volumetric flow rate

Min.: 1 l/min (0.3 us gal/min)

Max.: 60 l/min (15.9 us gal/min)

Description

Service:Liquid & Oil Wetted Parts Material:Body- Acrylic plastic; O-ring: Viton; Float- magnet cover with PPS platic; Connection- SS316 Spring- SS316 Connection Size:3/8", 1/2", 3/4"NPT female available Mounting:Vertical and Horizontal available, various flow directions Temperature & Pressure Limits:150psig (10bar) @100ºF (38ºC) Temperature Limit:-24ºC~+54ºC Accuracy:+/-5% F.S. Alarm Switch:One or Two setting points, form A N.O. type bistable reed switch Switch Rating:AC 125V 0.5A / DC 100V 10W / Max. DC 250V<1mA Weight: 0.45~0.5 kg (Contact setting point should be within 10% to 80% of F.S.)
