- Impeller flow meter
- Golden Mountain Enterprise

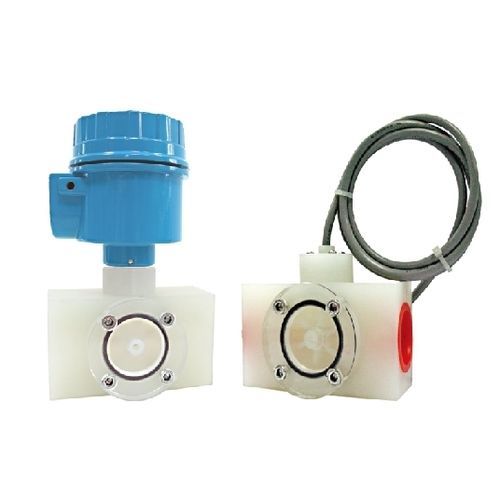

Impeller flow meter HF100volumefor liquidsthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Type
- volume
- Fluid
- for liquids
- Installation
- threaded, insertion
- Material
- aluminum, PTFE, polypropylene
- Communication
- 4-20 mA
- Protection level
- IP68
- Volumetric flow rate
Min.: 20 l/h
(5.2834 us gal/h)Max.: 4,200 l/h
(1,109.5226 us gal/h)- Process temperature
Min.: 0 °C
(32 °F)Max.: 70 °C
(158 °F)- Precision
2 %
Description
Technical Data
Connection Size: 3/8", 1/2", 3/4" 1"NPT female standard
Power Supply: 3.8V to 30VDC
Output: Sink(NPN) and 4~20mA available
Material:
Housing Case-Aluminum alloy [ for output 4~20mA (4-wires) only ]
Body-Polypropylene, PTFE, PVDF available
Cover-Acrylic, PP, PTFE, PVDF available
Rotor-PVDF
Shaft-Ceramic
Bearings-Ceramic
Housing Protection: IP68
O-Ring: Viton
Conduit Size: 1/2"NPT(F)
Max. Temperature: 70℃
Max. Pressure: Polypropylene and PTFE: 10kg/cm2 ; PVDF: 15kg/cm2
Accuracy: ±2%F.S
Catalogs
HF100
1 Pages
