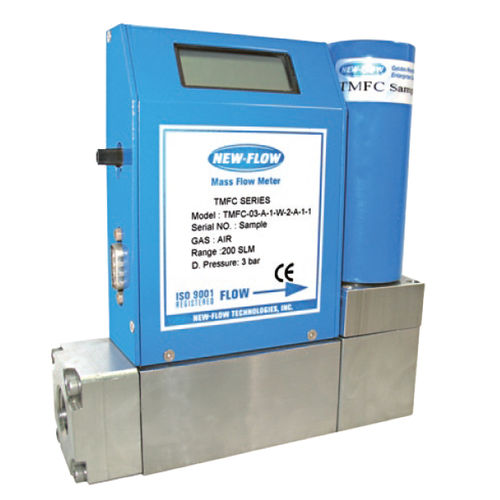

Thermal mass flow controller TMFC

for gasstainless steelwith LCD display

±1% Accuracy Linear Output Thermal Technology For Using in Non Corrosive Gas For Flow Rates up to 200 SLM Power Supply Included The NEW-FLOW Thermomal Mass Flow Meters provide high performance. Thermal Technology offers advantages in accuracy, sensitivity and turn quality components and the latest technology are combined to provide reliable, compact meters and controllers. The TMFC Series comes With or Without an LCD Display; or Flow Rate with Totalizer LCD Display. All models come with linear 0-5VDC and 4-20mA output. The TMFC Series measures the mass flow rate of gases in 3 ranges from 0-100SLM to 0-200SLM as shown in the range table. The TMFC Series combines a mass flow transducer with an electromagnetic proportional valve. Valves are not recommended as shut off valves. Controllers use a 0-5VDC linear set-point signal supplied from the local set-point pot or from a remote source. Technical Data Type: Without LCD Display; Flow Rate with LCD Display & Blue Back Lighted; Flow Rate with Totalizer LCD Display & Blue Back Lighted Wetted Parts Material: Standard flowbody-SS316, option available. O-ring: Viton or FFKM available Output Signal: 0~5 VDC Linear min. load 1000Ω or 4~20mA Linear, loop resistance 500Ω Input Power: 24VDC standard Accuracy: ±1%F.S. (including linearity) Turn Down Ratio: 100:1 Repeatability: ±0.15%F.S. or Better Electric Connection: 9 Pin Sub "D" Process Connection: 1/2"NPT female Control Signal: Integral or 0~5 VDC Control Valve: Electromagnetic N/C (Norm. Closed) Range: 0-100 SLM 0-200 SLM Max. Pressure 500psig Temperature Range: 0~50℃ Response Time: 1 Second Temp. Coefficient: 0.05% Full Scale per 1℃ or Better Pressure Coefficient: 0.01% Full Scale per PSIG or Better Flow Unit: Kg, GAL, NL, Nm3, cc, L, M3 (Flow rate with LCD display: Label by manufacturer; Flow rate with totalizer LCD display: Unit LCD display) Weight: app. 3.27kg with power supply app. 3.41kg with power supply & totalizer
