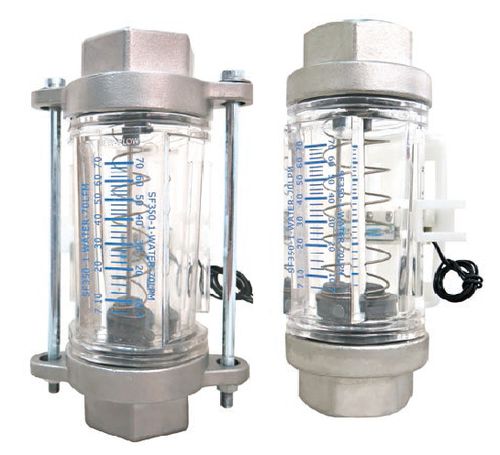

Variable-area flow meter SF350

volumefor liquidsvertical

Technical Data Service: Liquid, Oil Wetted Parts Material: Body: Polycarbonate(P.C); Polysulfone (PSU) available; O-Ring: Viton; Float: magnet cover with PPS plastic; Connection: SS316; Spring:SS316 Connection Size: 3/4", 1", 1-1/4", 1-1/2"NPT female available Mounting: Vertical and Horizontal available, various flow directions Max. Working Pressure Limit: 1.2MPa (12kg/cm2) Max. Test Pressure: 2.0MPa (20kg/cm2) (water 25℃) Max. Working Temperature Limit: -10℃ to 60℃ (for PC body); -10℃ to 110℃ (for PSU body) Accuracy: ±5% full scale Alarm Switch: One setting point, form A N.O. type bistable reed switch Switch Rating: AC 125V 0.5A / DC 100V 10W / Max. DC 250V<40mA Weight: 0.5~0.6 kg (Contact setting point should be within 10% to 80% of FS)
