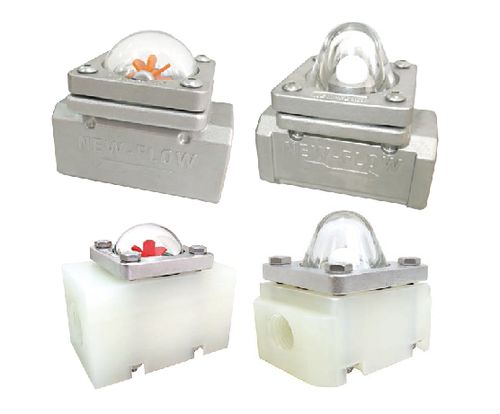

Stainless steel sight glass NAW series

stainless steel sight glass
stainless steel sight glass
stainless steel sight glass
stainless steel sight glass
Add to favorites
Compare this product


Characteristics

Specifications
stainless steel
Operating temperature

Min.: -20 °C (-4 °F)

Max.: 200 °C (392 °F)

Operating pressure

8 bar, 10 bar, 16 bar (116 psi)

DN

Min.: 0 in

Max.: 2 in

Description

Service: for Gases and Liquid Wetted Parts Material: Body: SS316, PP or PVDF available Bail: Teflon Window: Tempered glass Gasket: Viton or EPDM Rotor: PP+10% glass fiber (Color/Orange; Temp.: -20~80°C) PVDF (Color/White; Temp.: -20~90°C) PPS (Color/Yellow; Temp.: -20~200°C) Rotor Guide: SS316, or Ceramic available Température Limit: • - SS316 Body with Viton Gasket - : (-15°C) - - - +200°C • - SS316 Body with EPDM Gasket - : (-20°C) - - - +120°C • - PP Body with Viton or EPDM Gasket : 0 - 60°C • - PVDF Body with Viton Gasket - : (-15°C) - - - +90°C • - PVDF Body with EPDM Gasket - : (-20°C) - - - +90°C Pressure Limit: • - Métal: 16 bar • Plastic (PP): 8 bar • Plastic (PVDF): 10 bar Connection: Threaded type Size: Thread W, 3/s”, W', 3A”, 1", 1W\ lVfe" N PT or BSP female available Flow Direction: NAW-1: Left to Right or Right to Left available NAW-2: Any direction available
