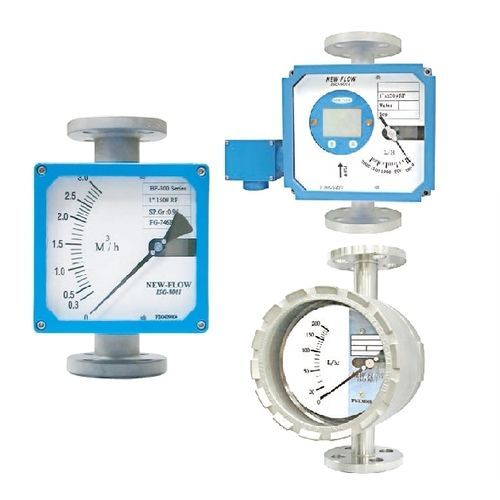

Variable-area flow meter BF300 series

volumefor liquidsfor gas

Technical Data BF300 for high flows of gas, liquid, steam Case Material: Aluminum alloy case with paint; SS316 available Body Wetted Parts Material: SS316; SS316+PTFE lining (PVDF float); others on request;, indication via magnetic coupling (no sealed) Lens Material: Safety Glass Scales Calibrated: in l/h, m3/h, kg/h, %, etc. Flow Rates For: SS316 Float: -Water: 1 l/h up to 200,000 l/h (special ranges on request) -Air: 0.03 Nm3/h up to 5400 Nm3/h (special ranges on request) PVDF Float: -Water: 4 l/h up to 10,000 l/h (special ranges on request) -Air: 0.13 Nm3/h up to 180 Nm3/h (special ranges on request) Connection Type: Thread Type, Flange Type, Trip Clamp & Sanitary (other on request) Connection Size: 1/4"~10" Mounting: Vertical mounting only Mounting Length: 250mm standard for size 1/4"~5", 300mm standard for size 6"~10"; Special length is on request Protection Class: Weather Proof IP66 / IP68 or Explosion proof available Accuracy: ±2%F.S (±1.6%F.S option) Max. Pressure: 40kg/cm2 (standard); Option: up to 100kg/cm2 Working Temperature: -50℃ to +200℃ (standard); up to 400℃ on request Option: Switch available (Micro switch 5A/125VAC, 5A/250VAC, 2A/30VDC); Adjustable Reed alarm switch available (form A bistable type, N.O type); Adjustable Inductive alarm switch available; 4~20mA (2-wires) analog output available LCD Display: -Totalizer 10 Digital (Top) / Flow Rate 8 Digital (Bottom) -Analog Output Available: 4~20mA (2-wires) -Power Supply: 24 VDC *HART® Communication: available Two Wire Transmitter with HART® Protocol: -Galvanic Isolation -Suitable for application in SIL 2 installations
