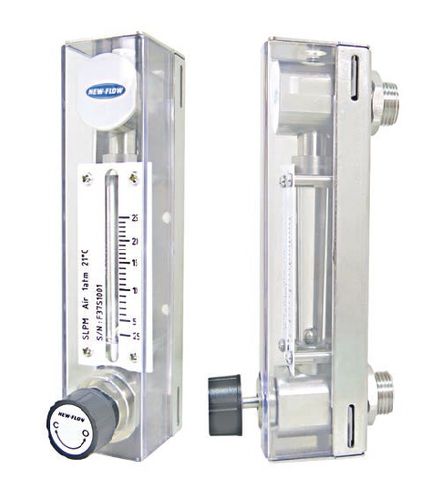

Variable-area flow meter RM

volumefor waterfor air

The variable area flow meter content a float & taper tube. The fluid flow through the taper tube and force up to the float. The flow rate is measured as a function of the area of the opening. This area displayed as the float that is free to move to produce the varying area. Technical Data Service: Gases (Air) & Liquid (Water) Wetted Parts Material: Body: SS316; O-ring: Viton, EPDM; others on request(FFKM); Metering Tube: Borosilicate Glass; Needle Valve: SS316; Float:SS316, POM Plastic, Glass, Black Glass-POL, TC(Tungsten Carbide), Rubysaph, Tantalum available on request Mounting: Horizontal position (Bottom to Top) Connection Size: 1/4"NPT female; Needle valve available Max. Working Temperature: 95℃ Max. Working Pressure: Glass tube-200psig (14kg/cm2) Accuracy: ±3% F.S; Repeatability 1% Weight: 0.55~0.6kg
