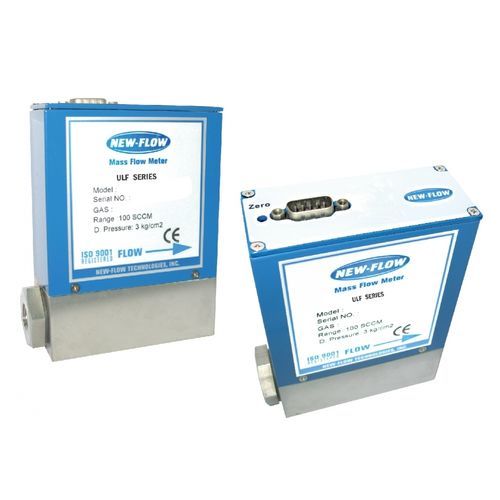

Thermal flow meter ULF

massfor liquidsfor gas

±1% Accuracy Linear Output Thermal Technology For Using in Non Corrosive Gas Power Supply Included The NEW-FLOW Thermal Mass Flow Meters provide high performance. Thermal Technology offers advantages in accuracy, sensitivity and turn quality components and the latest technology are combined to provide reliable, compact meters and controllers. The ULF Series comes an without an LCD display, and all models come with linear 0-5VDC and 4-20mA output. The ULF Series measures the mass flow rate of gases in 23 ranges from 0-10 SCCM to 0-100 SLM as shown in the range table. Technical Data Wetted Material: Standard flowbody-SS316; Tapcon; option available; O-ring: Viton or FFKM available Output Signal: 0~5 VDC Linear min. load 1000Ω or 4~20mA Linear, loop resistance 500Ω Input Power: 24VDC standard; optional power supply 15VDC 115VAC, 220VAC@500mA Accuracy: ±1%FS (including linearity) Turn Down Ratio: 100:1 Repeatability: ±0.15%FS or better Electric Connection: 9 Pin Sub "D" Process Connection: 1/4"NPT female Range: 0-10 SCCM to 0-100 SLM Minimum Pressure: 40" H2O Max Pressure: SS316-500psig; Tapcon-250psig Temperature Range: 0~50℃ Response Time: 1 Second Temp. Coefficient: 0.05% Full Scale per 1℃ or better Pressure Coefficient: 0.01% Full Scale per PSIG or better Weight: app. 1.08kg with power supply
