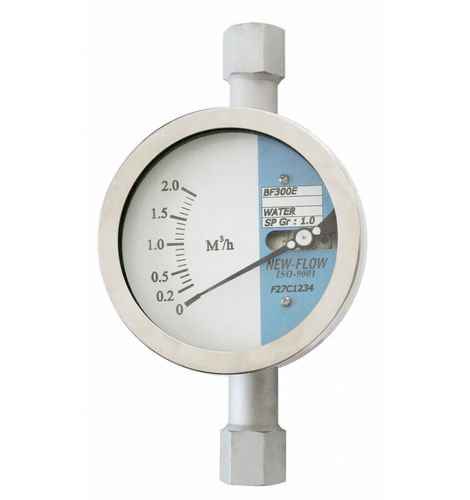

Variable-area flow meter BF300E series
magneticfor waterfor gas

variable-area flow meter
variable-area flow meter
variable-area flow meter
variable-area flow meter
variable-area flow meter
Add to favorites
Compare this product

Characteristics

Technology
variable-area, magnetic
Fluid
for water, for gas, for steam
Other characteristics
metal tube, stainless steel, in-line, flange, threaded, IP66
Applications
sanitary
Process temperature

Max.: 200 °C (392 °F)

Min.: -50 °C (-58 °F)

Volumetric flow rate

Max.: 100,000 l/h (26,417.2 us gal/h)

Min.: 4 l/h (1.1 us gal/h)

Description

BF300E for high flows of gas, liquid and steam Case Material: SS316 Body wetted parts: SS316, Others on request. Indication via magnetic coupling (no sealed) Scales calibrated: in l/h, m3/h, kg/h, %, etc. Flow rates for: SS316 Float: - - Water: 1 l/h up to 200,000 l/h (spécial ranges on request) - - Air: 0.03 Nm3/h up to 5,400 Nm3/h (spécial ranges on request) PVDF Float: - - Water: 4 l/h up to 10,000 l/h (spécial ranges on request) - - Air: 0.13 Nm3/h up to 180 Nm3/h (spécial ranges on request) Connection types: Thread type, flange type, trip clamp & sanitary (other on request) Connection size: V2” ~ 6” Mounting Length: 250mm standard for size të"~5"f 300mm standard for size 6"; Spécial length is on request Température: -50°C to +200°C (300°C option) Protection class: IP68 Accuracy: ±2% F.S (±1.6% F.S Option) Max. pressure: 40 kg/cm2, standard (Option: up to 100 kg/cm2)
