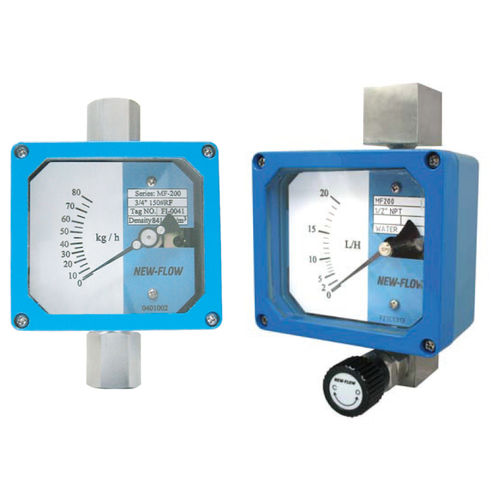

Variable-area flow meter MF200 series
magneticfor waterfor gas

variable-area flow meter
variable-area flow meter
variable-area flow meter
variable-area flow meter
variable-area flow meter
variable-area flow meter
variable-area flow meter
Add to favorites
Compare this product

Characteristics

Technology
variable-area, magnetic
Fluid
for water, for gas, for steam
Other characteristics
metal tube, electronic, stainless steel, aluminum, flange, IP66
Applications
for low flow rates
Process temperature

Max.: 180 °C (356 °F)

Min.: -40 °C (-40 °F)

Volumetric flow rate

Max.: 4,000 l/h (1,056.7 us gal/h)

Min.: 0.4 l/h (0.1 us gal/h)

Description

Technical Data MF200 for low flow of gas, liquid and steam Material: aluminum alloy painted for case; body in stainless Steel. Indication: via magnetic coupling (no seals) Scales: calibrated in l/h,m3/h,kg/h, % Flow rate: water-0.4 l/h up to 4000 l/h air—21 N L/h upto 120,000 NL/h Connection types: BSP, NPT, flange type on request Working Température: Combine with electronic parts: -40°C~+150°C Combine without electronic parts: -40°C~+180°C Working Pressure: standard 100 kg/cm2; other options upon request Connection size: W -l1/?' Protection Class: IP66 Accuracy: ±2% F.S (±1.6% F.S option)
