Piston flow switch FS35R for waterfor oilthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- for water, for oil
- Other characteristics
- stainless steel, brass, threaded, IP65
- Applications
- process
Description
FS35RB-Stainless Steel+Brass Inner Parts
FS35RS-Stainless Steel
Good Repeatability
Dirt-Resistance
High Switch Capability

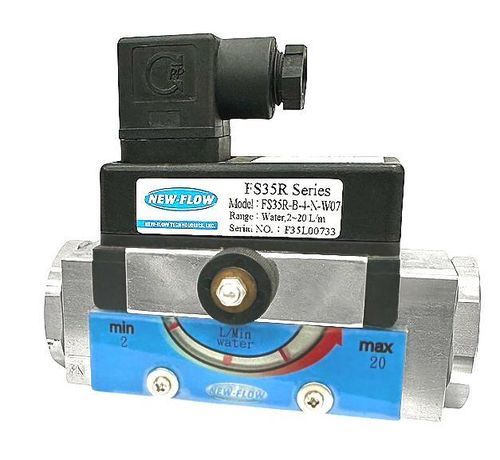

The New-Flow FS35R Flow Switch for liquids media with spring supported piston and magnetic actuation of a micro switch. Robust design, produced in materials brass or stainless steel.
Technical Data
Protection Class: IP65
Process Connection: 1/4" to 1" female, thread PF and NPT available
Wetted Parts Material: Brass or Stainless Steel
Micro Switch: Rating 3A/250VAC, 5A/125VAC
Conduit Connection: DIN43 650 / EN 175301-803
Accuracy: ±5% of Full Scale
Temperature Limited: Max. 120℃
Pressure Limited: Average pressure loss 0.5 Bar at Qmax
Hysteresis: Depending on switch value from 15~20%F.S.
Catalogs
FS35R
2 Pages
